Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Dust Warning .

WARNING:

Refer to Brake Fluid Irritant Warning .

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

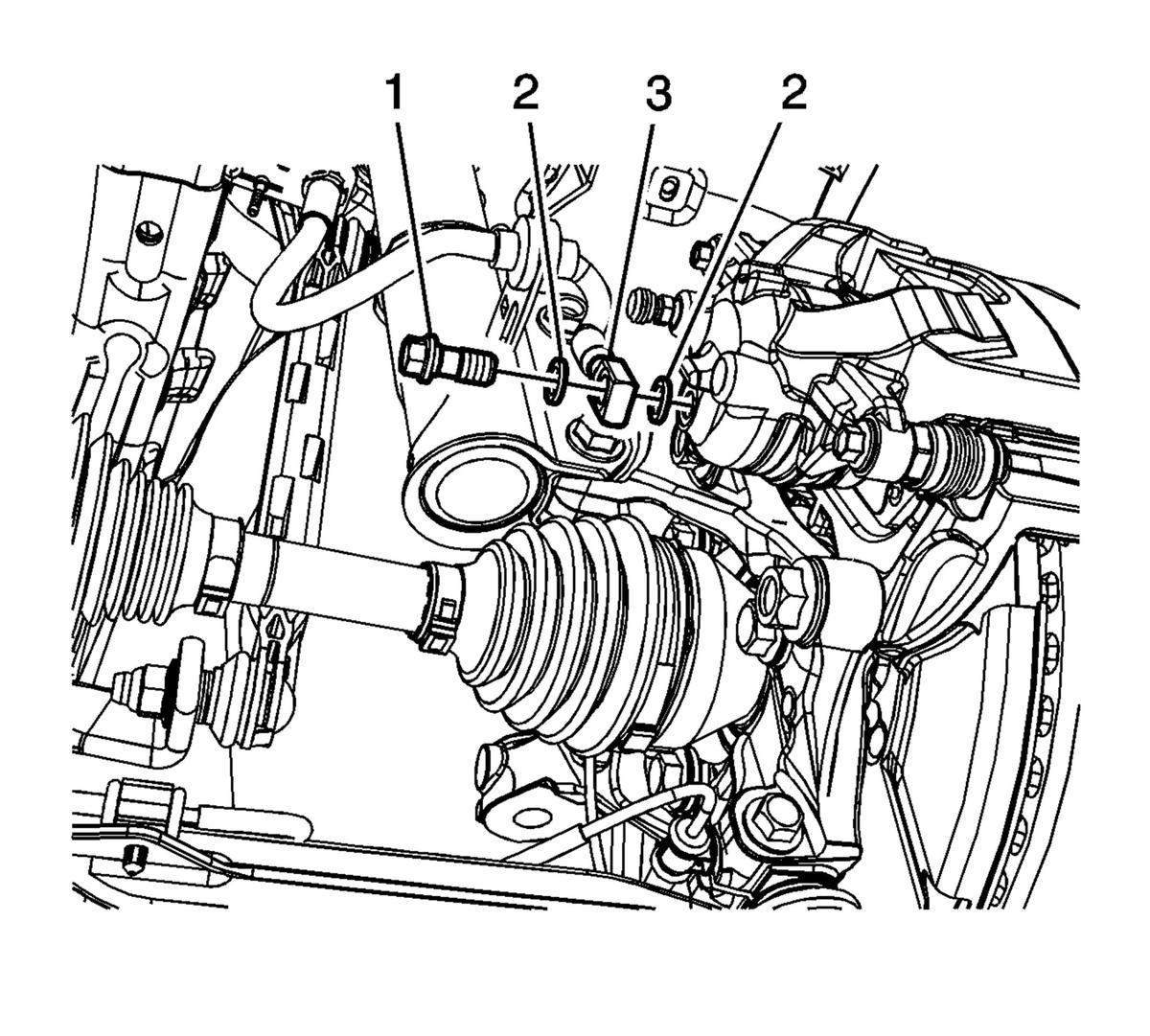

  3. GM2375918

    Remove the brake hose fitting bolt (1).

    4. NOTE:

    Do not reuse the brake hose fitting gaskets.

  4. Remove and discard the brake hose fitting gaskets (2) from the brake hose fitting (3).
  5. Cap the brake hose fitting to prevent brake fluid loss and contamination.

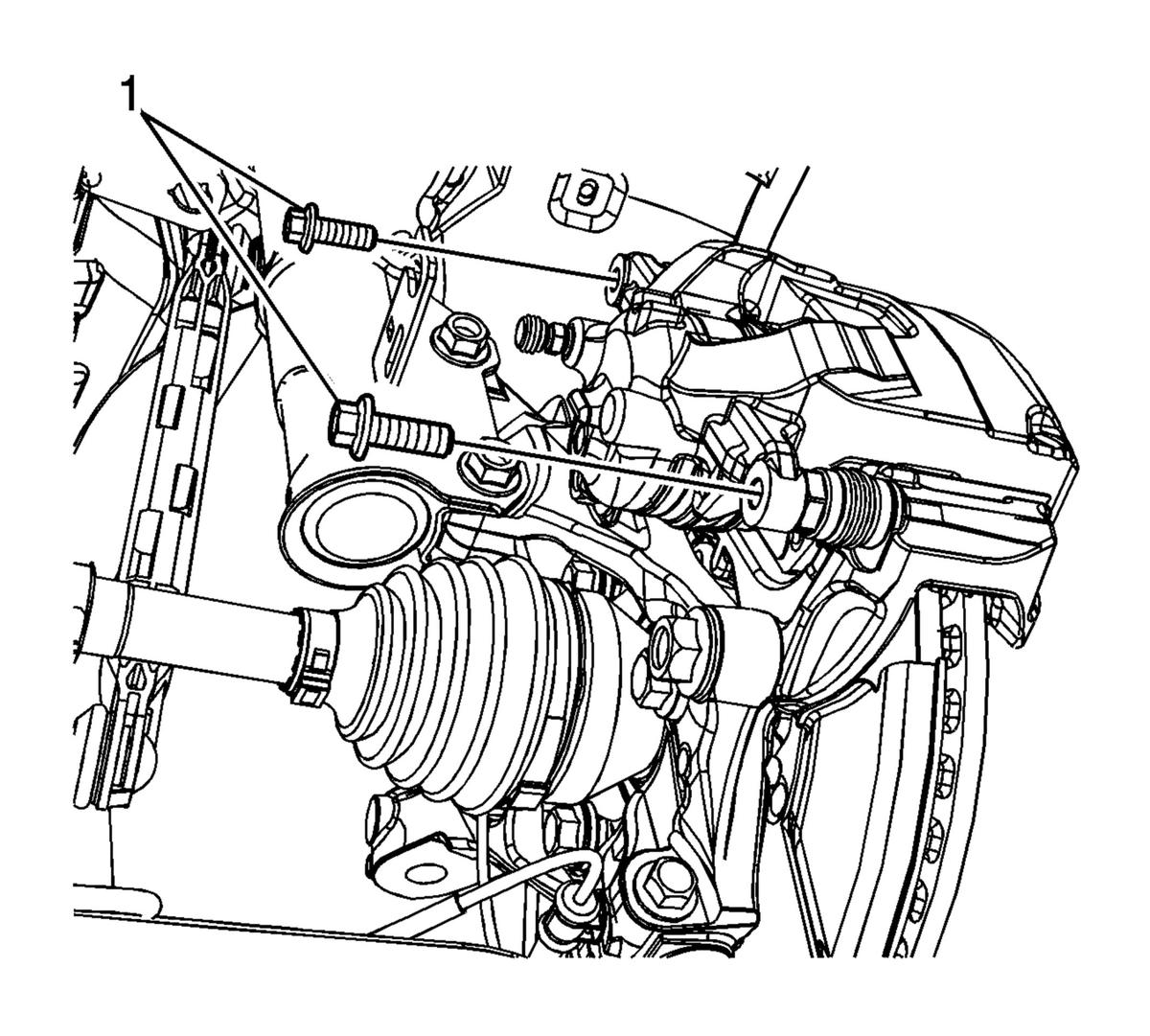

  6. GM2375919
    NOTE:
    • DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
    • Install an open end wrench to hold the caliper guide pin in line with the brake caliper while removing or installing the caliper guide pin bolt. DO NOT allow the open end wrench to come in contact with the brake caliper. Allowing the open end wrench to come in contact with the brake caliper will cause a pulsation when the brakes are applied.

    Using a backup wrench to hold the brake caliper guide pin stationary, remove the brake caliper guide pin bolts (1).

  7. Remove the brake caliper.
