Transfer Case Input Shaft Bearing Retainer Front Seal and Rear Extension Locating Pin Removal

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

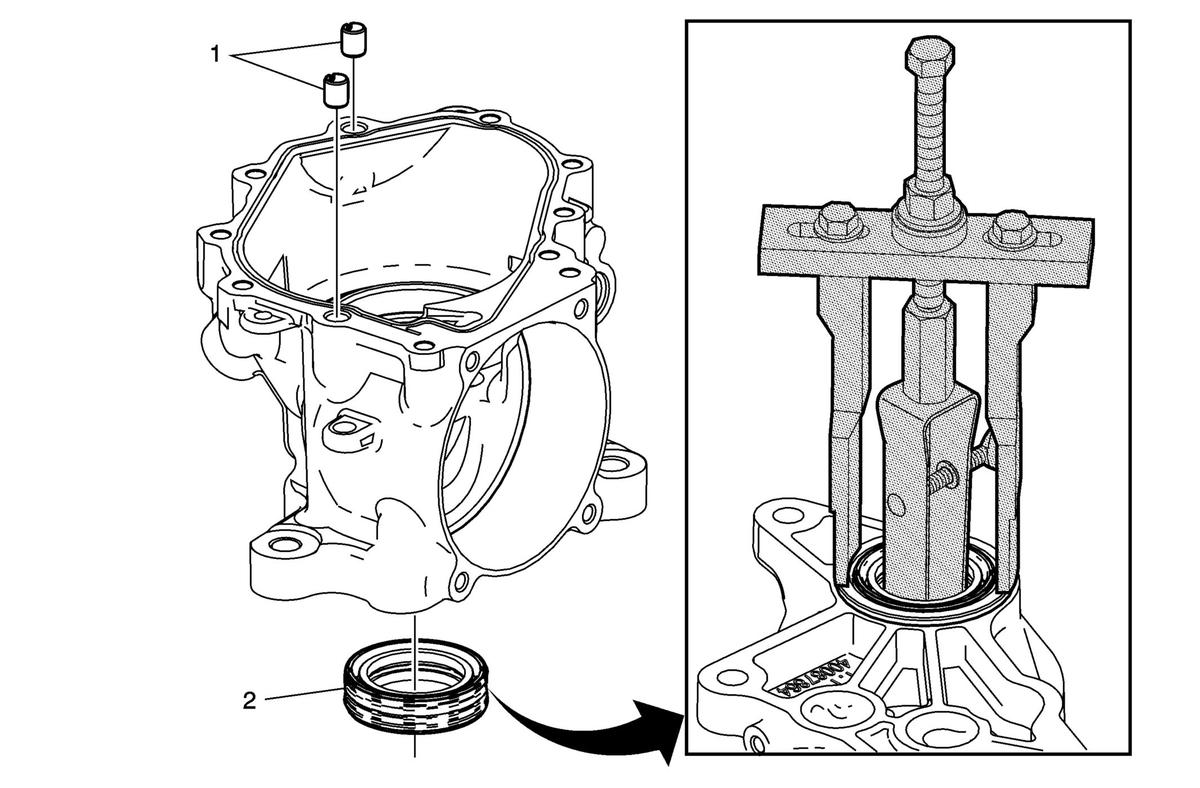

GM2745646
Transfer Case Input Shaft Bearing Retainer Front Seal and Rear Extension Locating Pin Removal

Callout Component Name
1 Transfer Case Rear Extension Housing Locating Pin, as required (Qty: 2)
2 Transfer Case Input Shaft Bearing Retainer Front Seal

Special Tools

  • J-26941  Bushing and Bearing Remover
  • J-45124  Removal Bridge

For equivalent regional tools, refer to Special Tools .
