Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING:

    SIR Inflator Module Handling and Storage Warning

    WARNING:

    SIR Warning

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM2788249

    Instrument Panel Compartment(2) - Remove - Instrument Panel Compartment Replacement

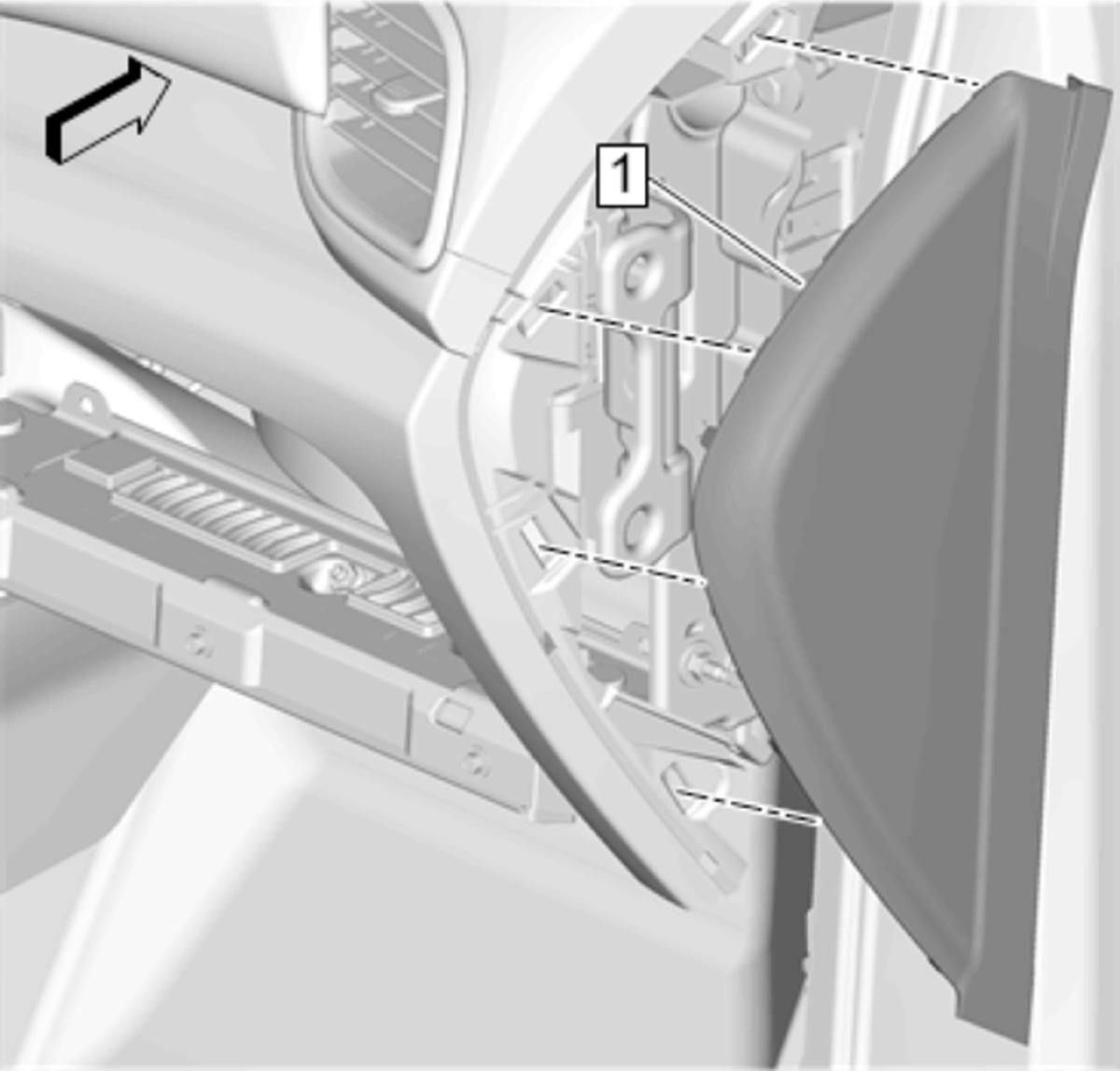

  3. GM4726149

    Instrument Panel Outer Trim Cover - Right Side(1) - Remove - Instrument Panel Outer Trim Cover Replacement (Buick)Instrument Panel Outer Trim Cover Replacement (Chevrolet)

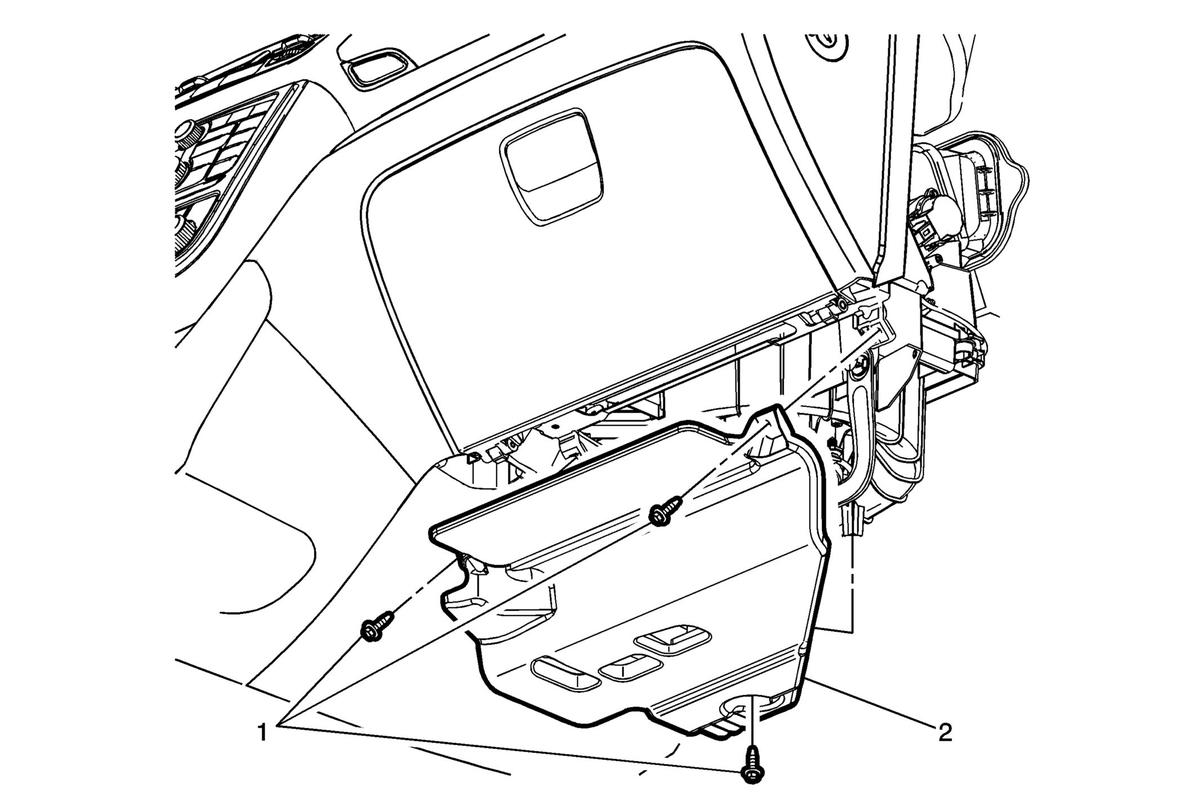

  4. GM2784844

    Instrument Panel Lower Trim Panel Insulator(2) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement (Chevrolet)Instrument Panel Lower Trim Panel Insulator Replacement (Buick)

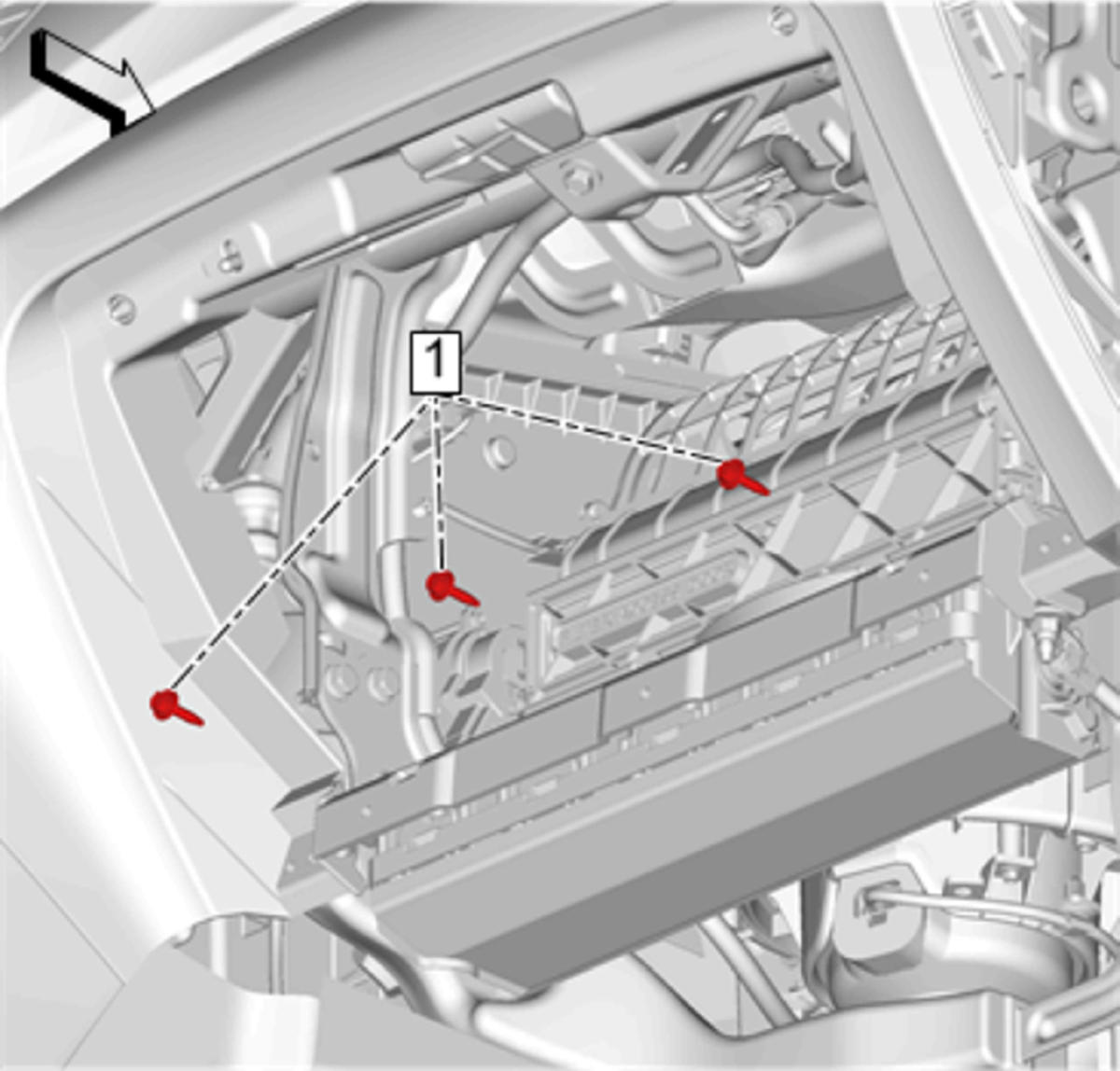

  5. GM4726112

    Instrument Panel Bolt(1) - Remove[3x]

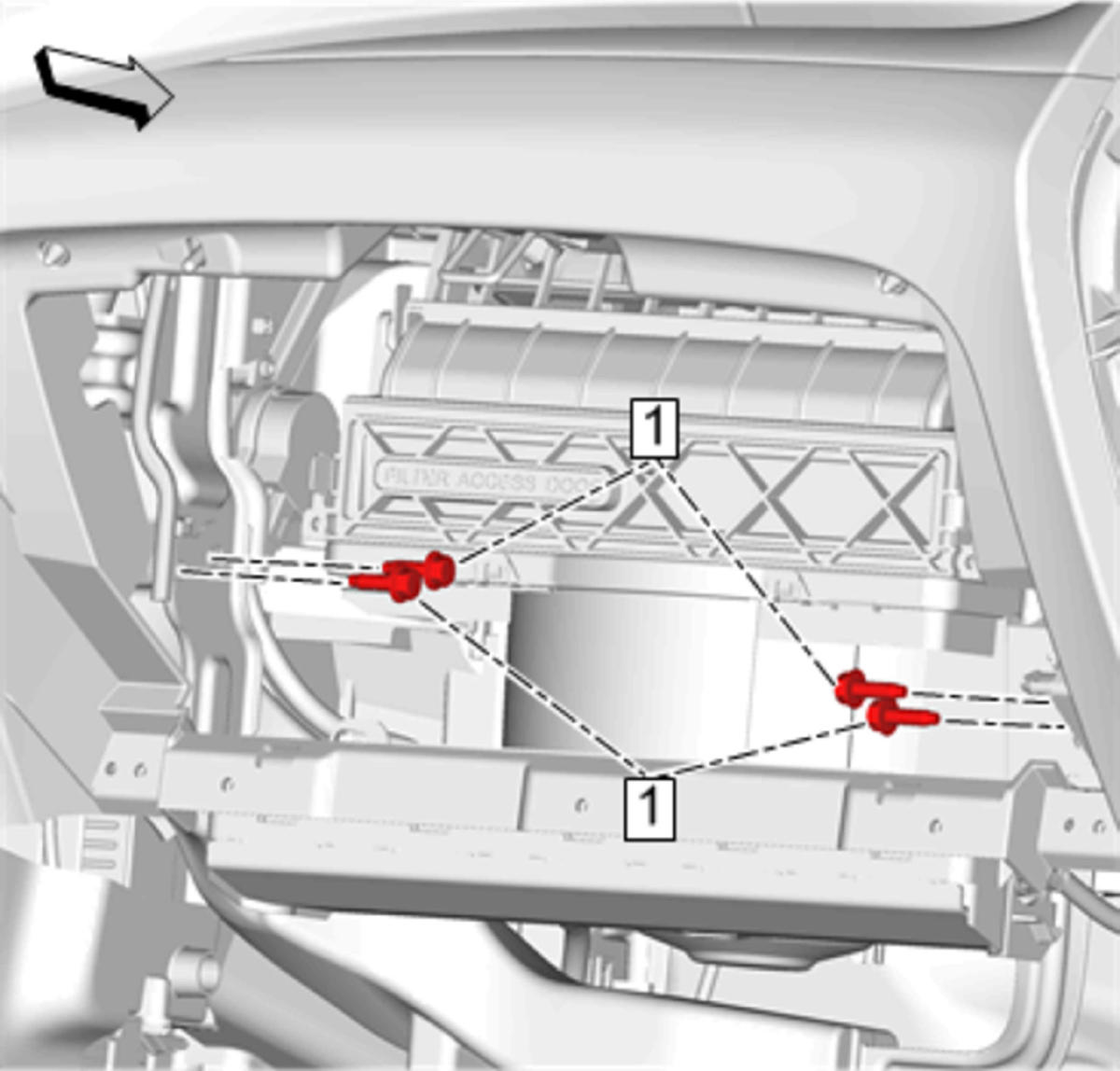

  6. GM4726118

    Instrument Panel Lower Airbag Bracket Bolt(1) - Remove[4x]

  7. Disconnect the electrical connector.

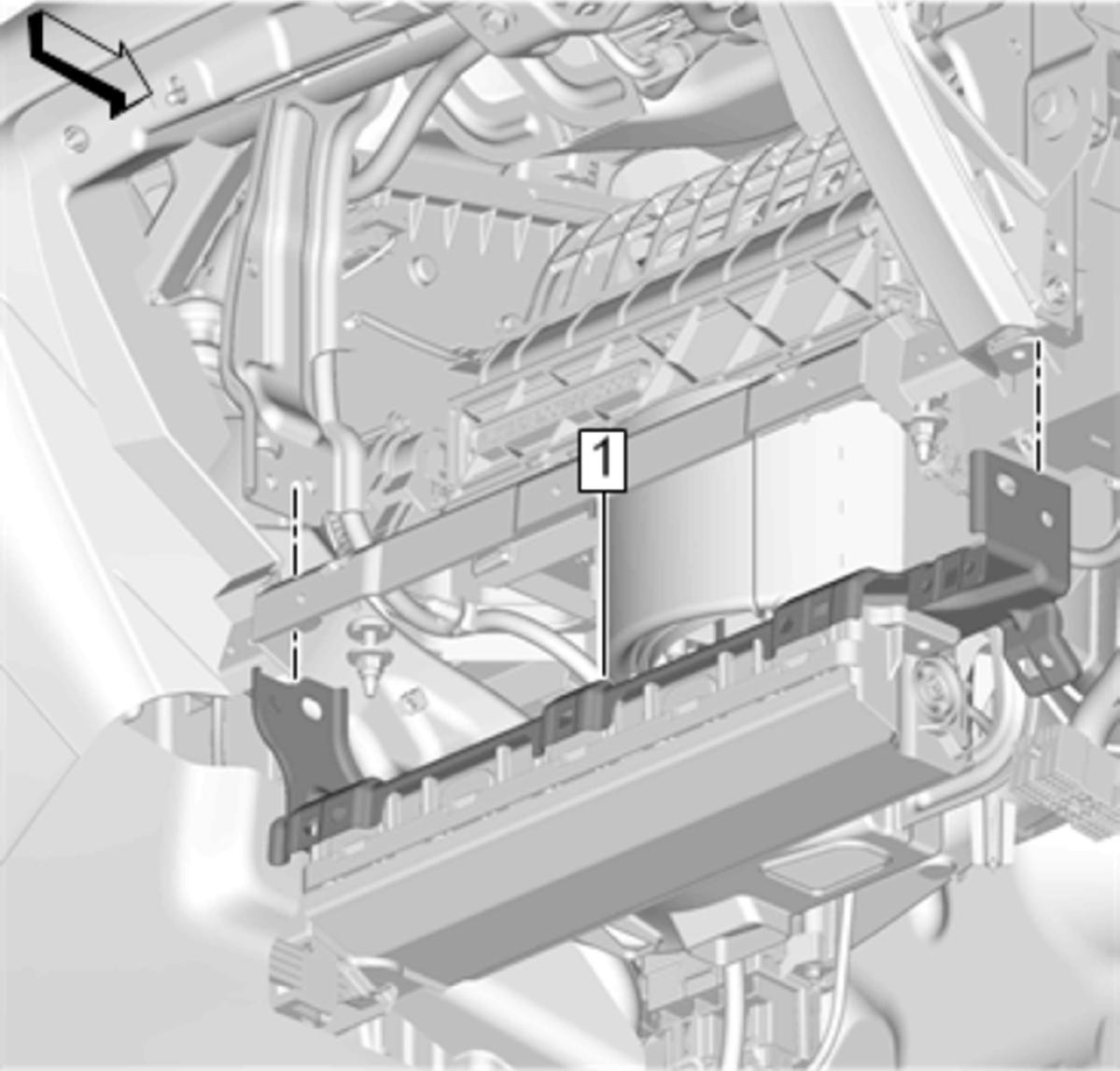

  8. GM4726124

    Instrument Panel Lower Airbag Bracket(1) - Remove

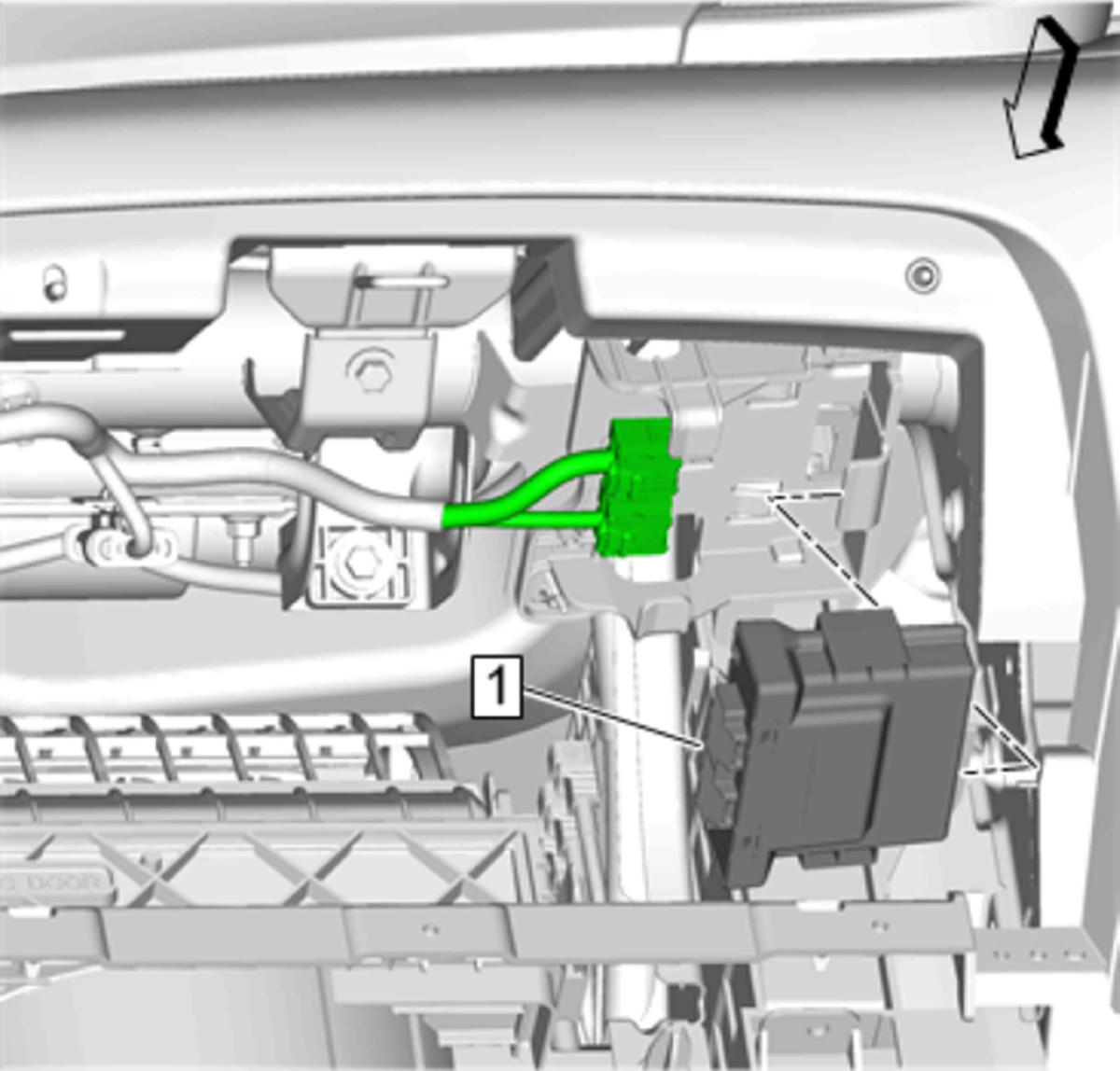

  9. GM4726129

    Serial Data Gateway Module(1) - Remove

  10. Disconnect the electrical connectors.

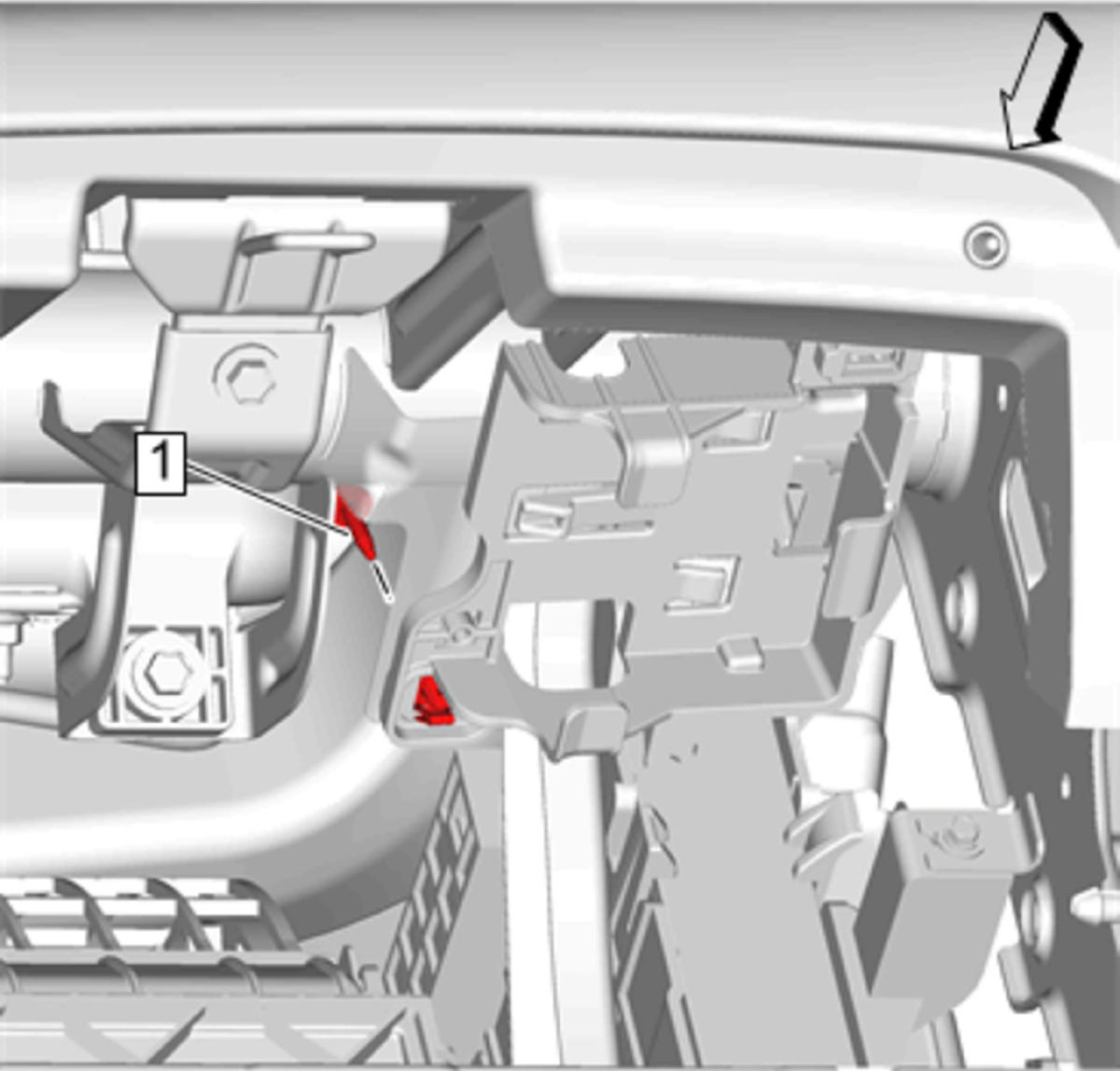

  11. GM4726130

    Serial Data Gateway Module Bracket Bolt(1) - Remove

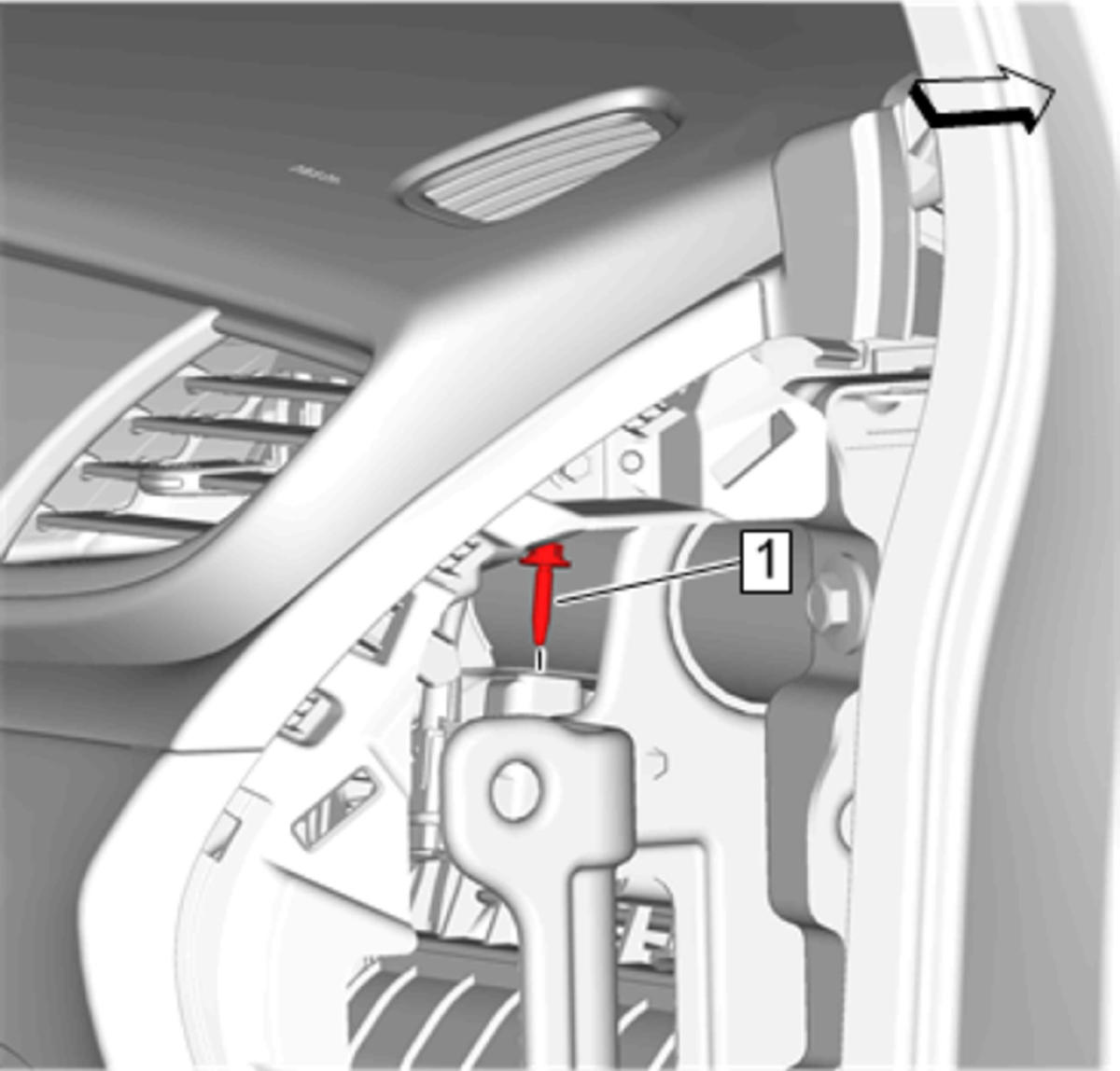

  12. GM4726131

    Serial Data Gateway Module Bracket Bolt(1) - Remove

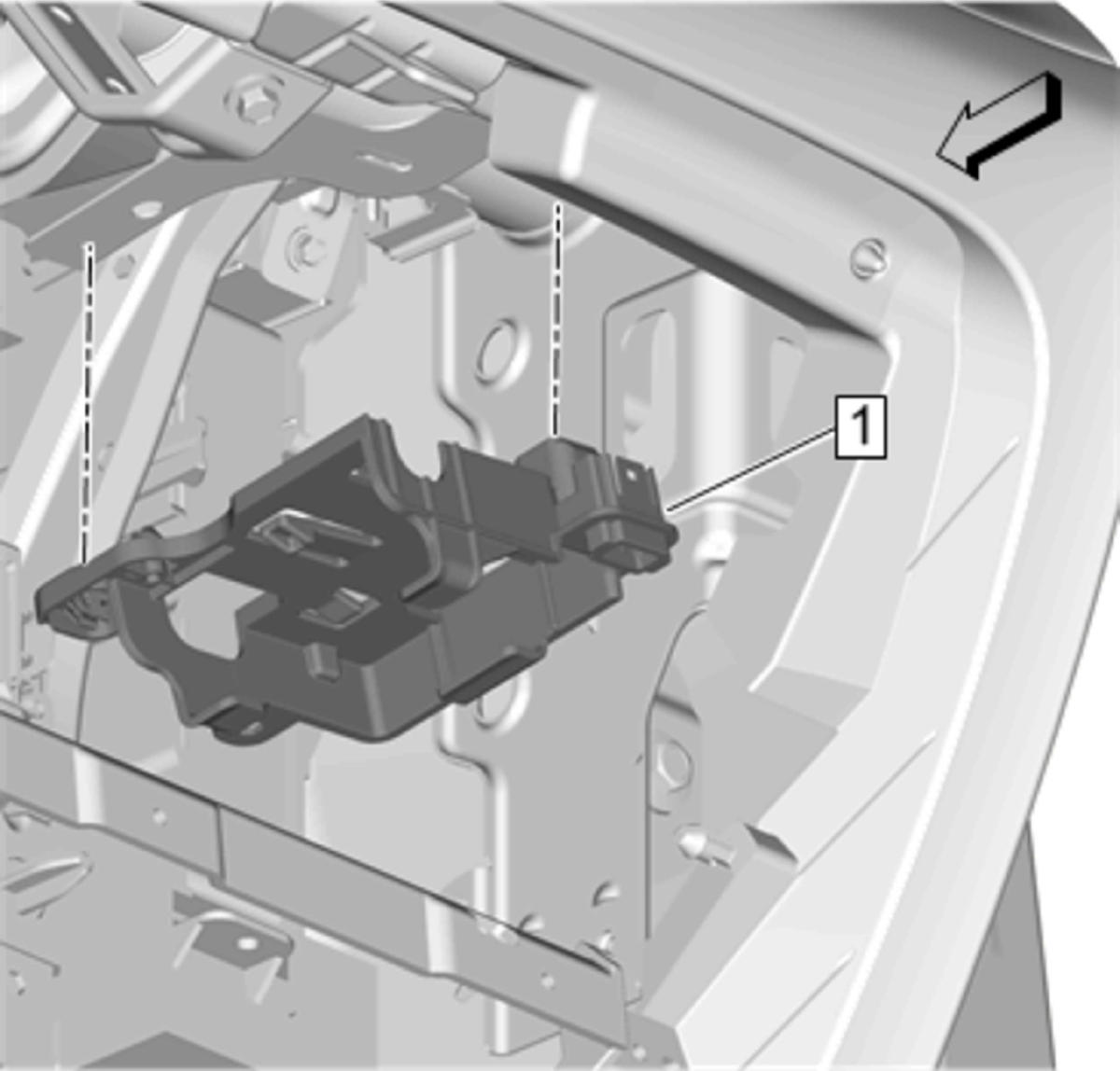

  13. GM4726132

    Serial Data Gateway Bracket(1) - Remove
