Repair Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Pressure test the cooling system. Refer to Cooling System Leak Testing .
Grind the fracture surface (1) with a proper tool.
- Drill a hole in the center of the fractured surface, using a 6 mm (0.24 in) drill.

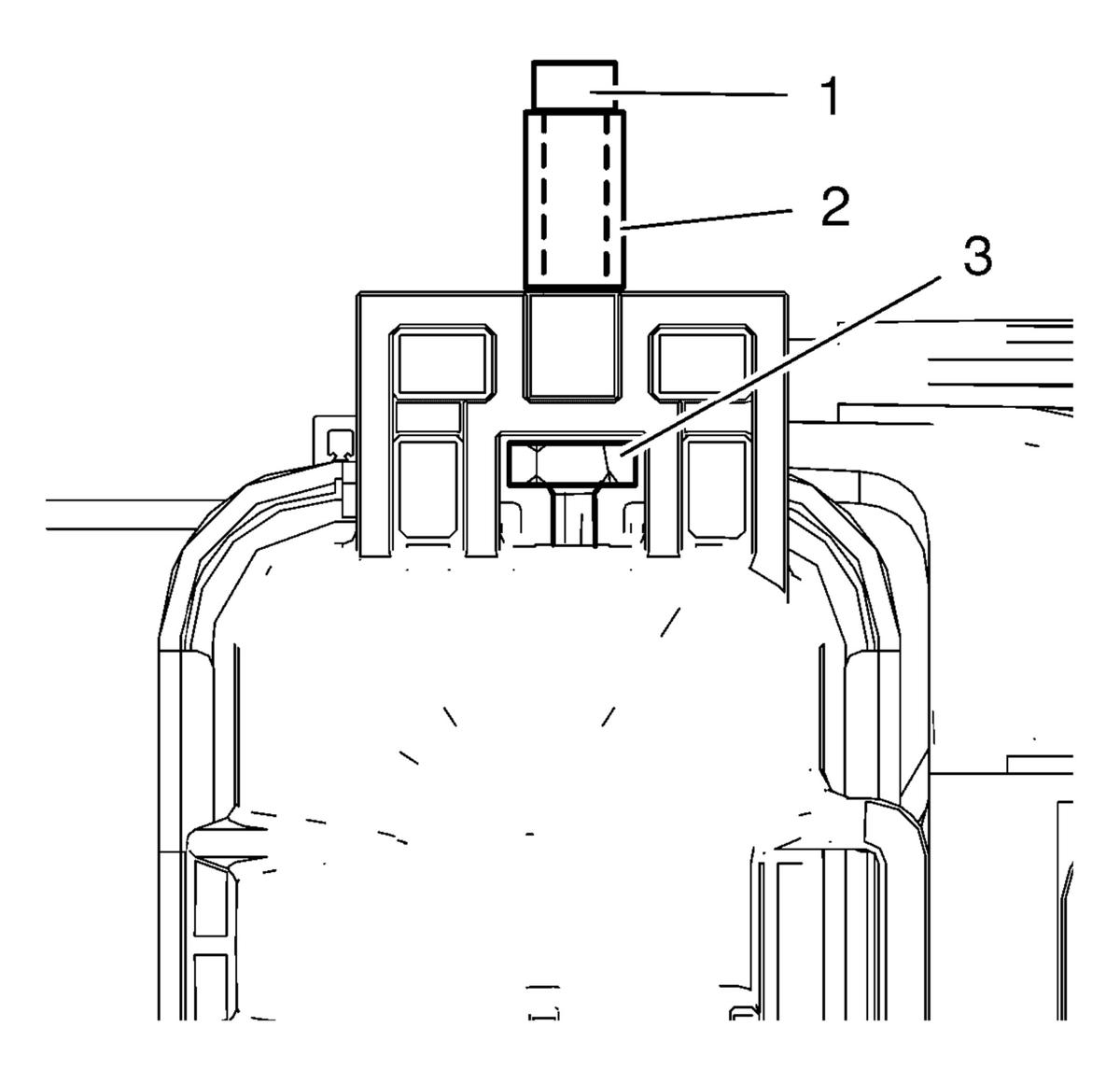

Install the new radiator mounting pin (2).
- Install the nut (3).
- Install the radiator mounting pin (2) with the bolt (1).
NOTE:The bolt should not be longer than 35 mm (1.38 in).
- Tighten the bolt 5 N.m (44 lb in).
NOTE:
If the radiator is leaky, replace it. Refer to Radiator Replacement (LUV) Radiator Replacement (2H0) Radiator Replacement (LE2) .
CAUTION:
Refer to Fastener Caution .
