Headlamp Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

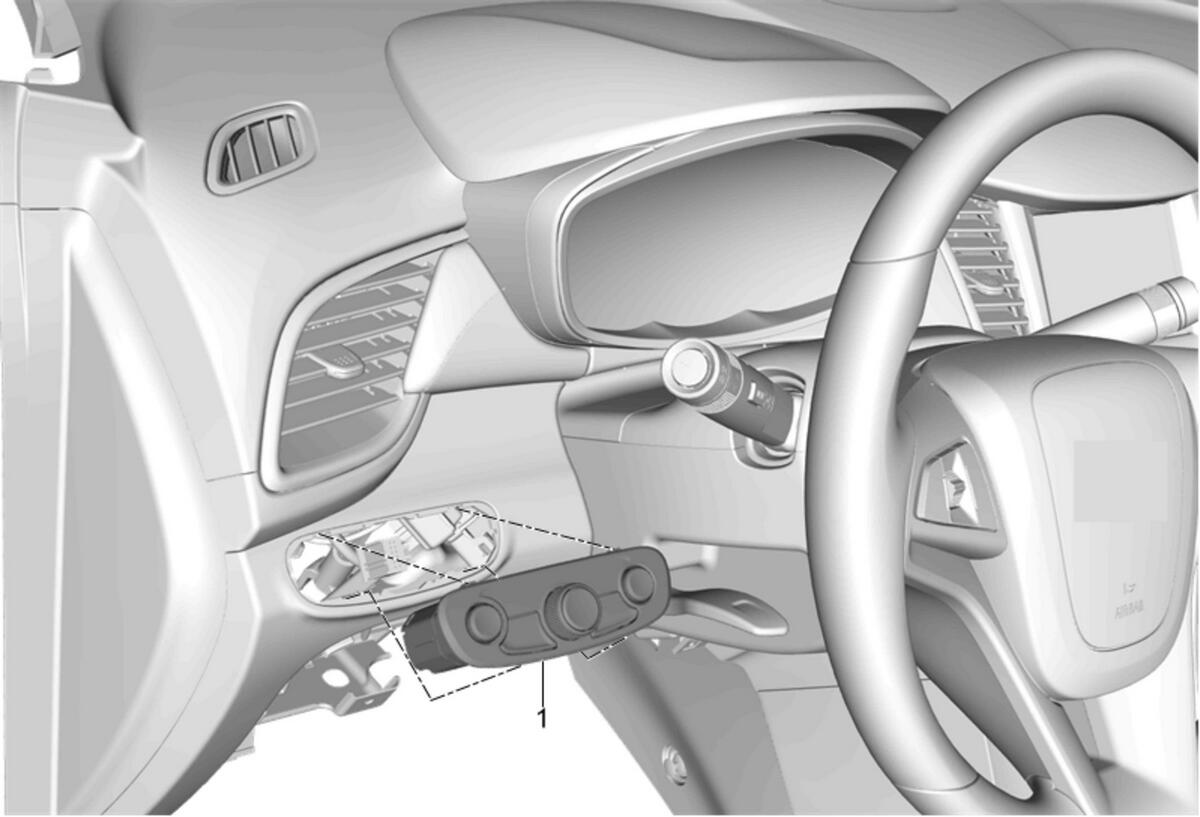

GM4426967
Callout Component Name
Preliminary Procedure
Instrument Panel Knee Bolster Replacement (Buick)Instrument Panel Knee Bolster Replacement (Chevrolet)
1 Headlamp Switch

Procedure

  1. Depress the tabs on the lamp switch to remove.
  2. Disconnect the electrical connector.
