LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Buick
>>
2019
>>
Envision Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular, Entertainment, And Navigation System
>>
Schematic and Wiring Diagrams
>>
OnStar/Telematics Wiring Schematics
>>
Telematics Communication Interface Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

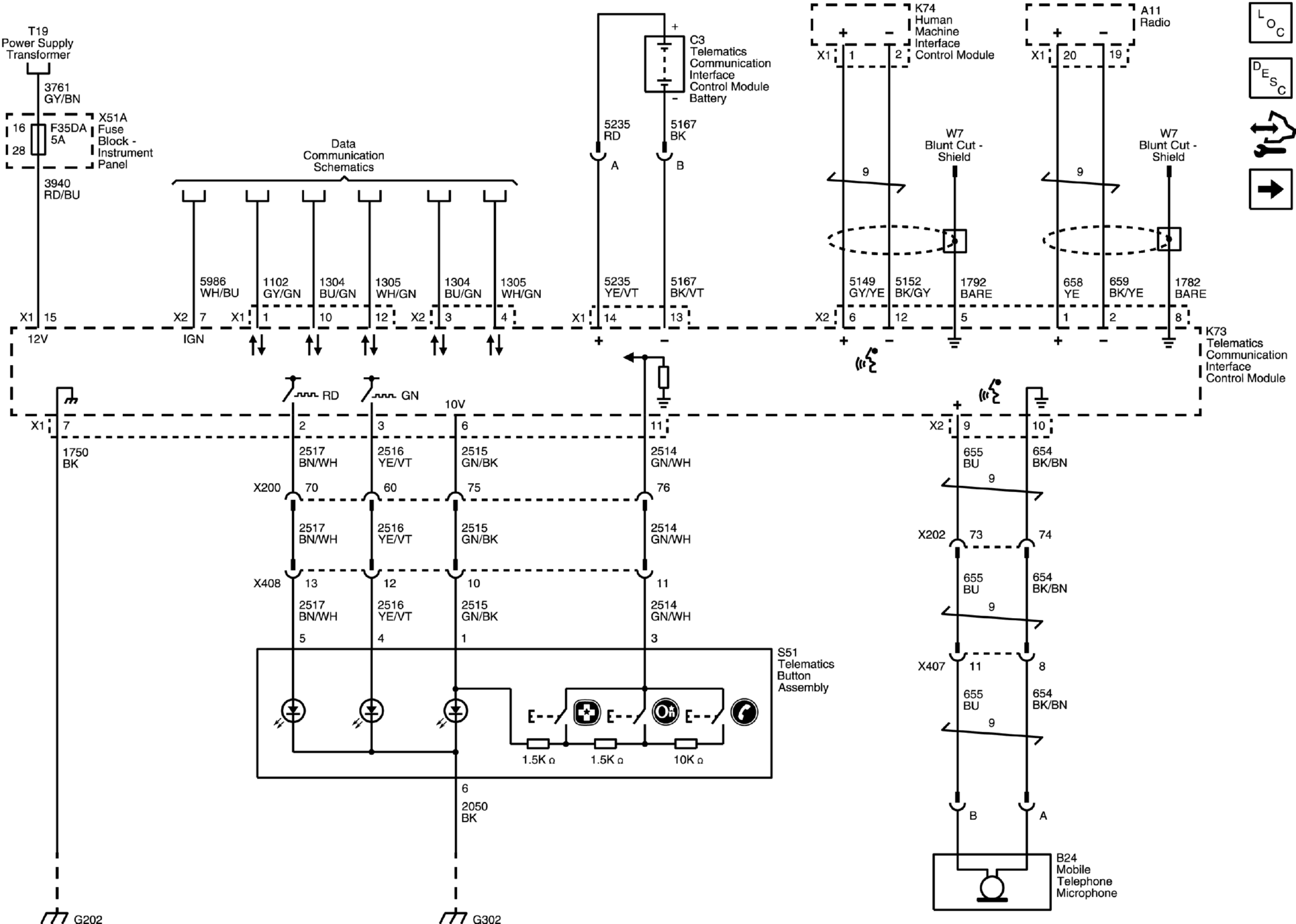

Telematics Communication Interface Control Module
Courtesy of GENERAL MOTORS COMPANY
