Front Side Door Lock Cylinder Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

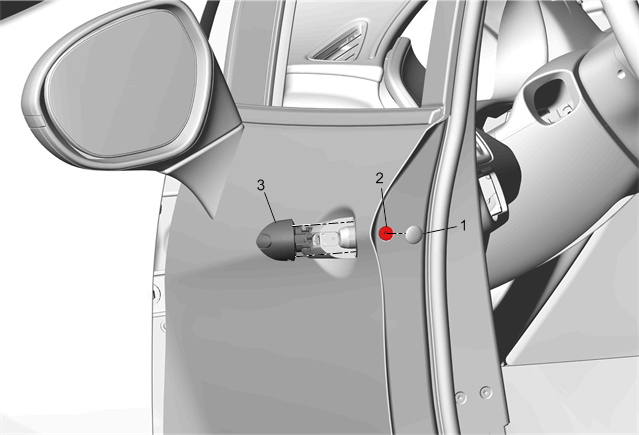

Callout	Component Name
1	Front Side Door Access Hole Plug Procedure Use a flat bladed plastic tool to remove.
2	Front Side Door Lock Cylinder Opening Cover Screw CAUTION: Refer to Fastener Caution . NOTE: When removing the lock cylinder opening cover, Do NOT turn the screw past the hard stop. Tighten 4.7 N.m (42 lb in)
3	Front Side Door Lock Cylinder Opening Cover Procedure Pull the front side door outside handle outward to unlock the door lock cylinder opening cover. Pull the lock cylinder opening cover from the door.

Callout

Component Name

Front Side Door Access Hole Plug
Procedure
Use a flat bladed plastic tool to remove.

Front Side Door Lock Cylinder Opening Cover Screw

CAUTION:

NOTE:

When removing the lock cylinder opening cover, Do NOT turn the screw past the hard stop.

Tighten
4.7 N.m (42 lb in)

Front Side Door Lock Cylinder Opening Cover

Procedure

Pull the front side door outside handle outward to unlock the door lock cylinder opening cover.
Pull the lock cylinder opening cover from the door.
