Front Side Door Locking Rod Knob Replacement

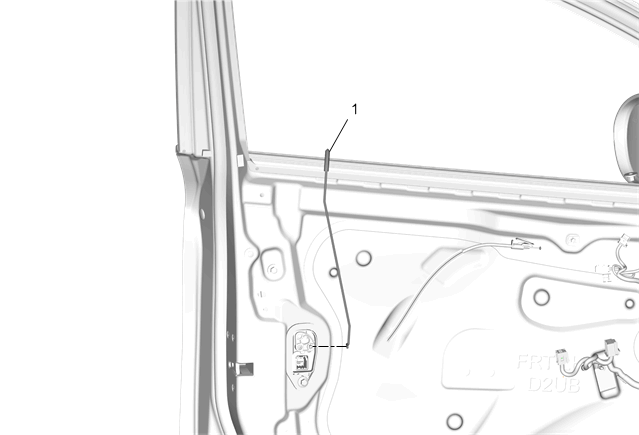

GM3826265Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Side Door Locking Rod
Procedure
Pull the locking rod knob down and outward releasing locking rod knob from the latch.
