Opening the Liftgate Without Electrical Power

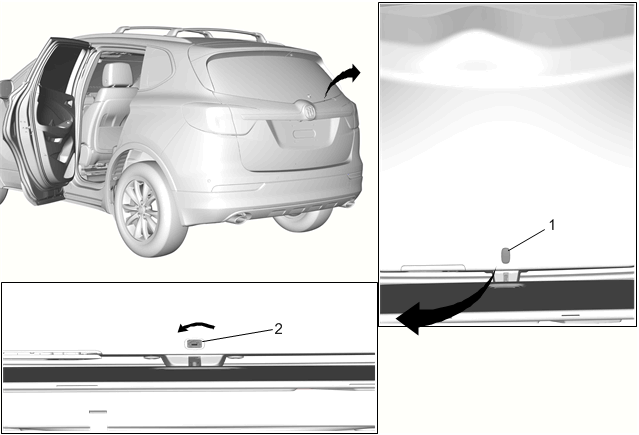

| Callout | Component Name |
|---|---|
| 1 | Liftgate Latch Release Adapter Hole Plug. |
| 2 | Liftgate Latch Procedure Insert a flat bladed service type tool into the square hole and turn it counter clockwise (arrow) until the primary latch releases.
NOTE:
Rotation to release latch should be approximately 30 degrees.Excessive rotation can cause damage to the latch. |
