B52A Heated Oxygen Sensor 1 (LCV)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

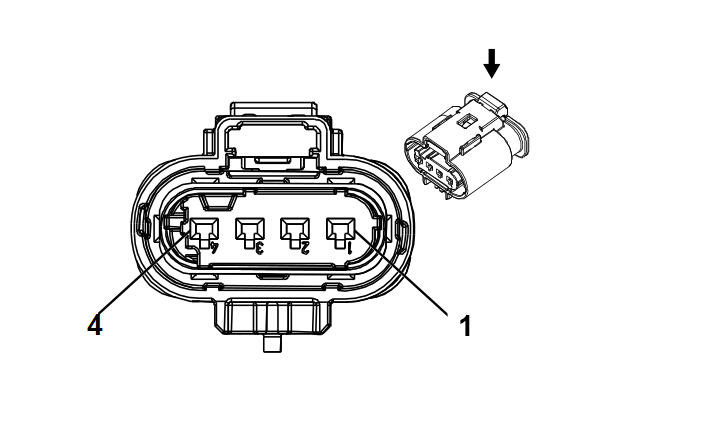

Connector Part Information
- Harness Type: Engine
- OEM Connector: 10010346
- Service Connector: 13587299
- Description: 4-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/WH |
3113 |
Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 1 |
I |
LCV |
| 2 |
0.5 |
VT/BU |
5293 |
Powertrain Main Relay Fused Supply 4 |
I |
LCV |
| 3 |
0.5 |
WH/BK |
3111 |
Heated Oxygen Sensor Low Signal Bank 1 Sensor 1 |
I |
LCV |
| 4 |
0.5 |
VT/GY |
3110 |
Heated Oxygen Sensor High Signal Bank 1 Sensor 1 |
I |
LCV |
