Rear Compartment Lid Release Switch Replacement

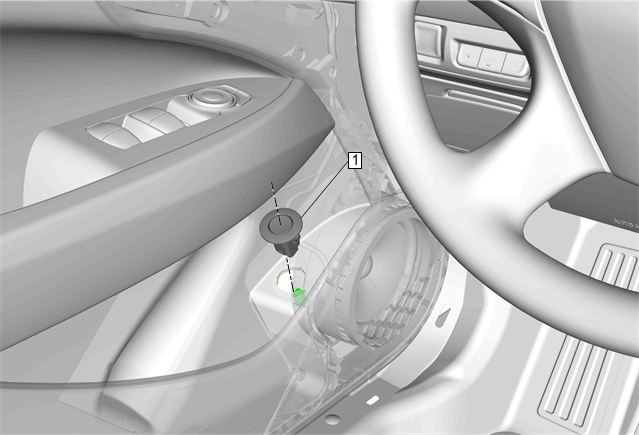

GM4323131Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Lid Release Switch

Procedure

  1. Use a flat-bladed tool to release the switch from the mount plate.
  2. Disconnect the electrical connector.
