Door Lock Switch Replacement - Passenger Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement

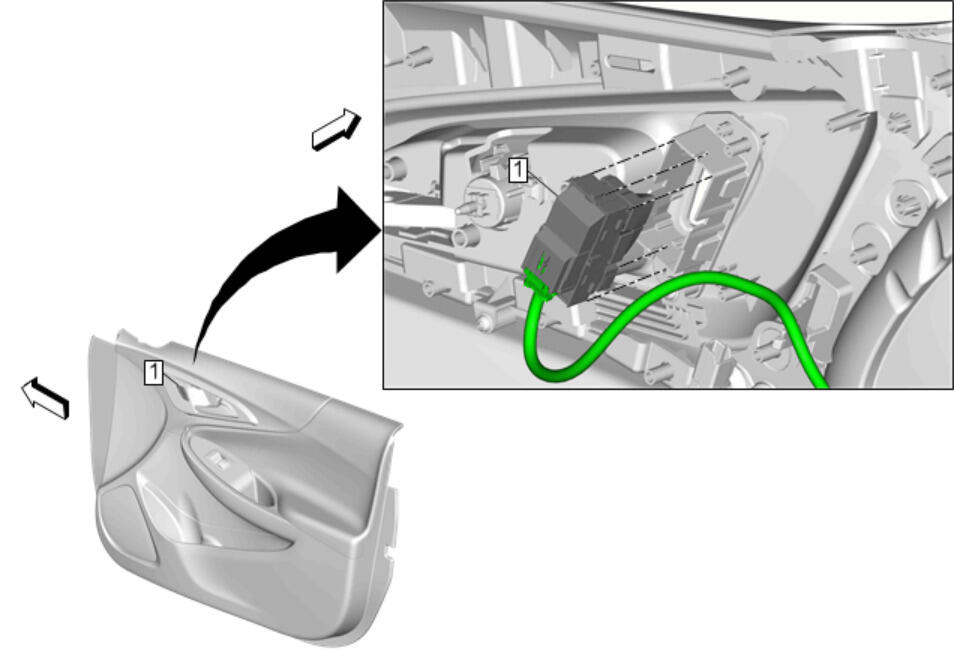

1	Door Lock Switch Passenger Front Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim. Control Module References for programming and setup information, if required.

Callout

Component Name

Door Lock Switch Passenger Front

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
Control Module References for programming and setup information, if required.
