Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

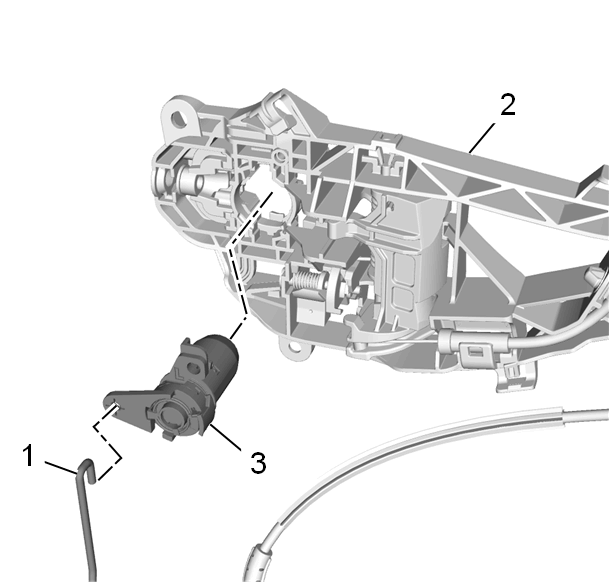

Front Side Door Lock Cylinder (3) @ Front Side Door Outside Handle Bracket (2) - Install
Front Side Door Lock Cylinder Rod (1) @ Front Side Door Lock Cylinder (3) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Install the front side door latch cover (2).
Install the front side door latch cover bolt (1) and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Install the front side door latch with front side door outside handle bracket (1) to the front side door.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch Bolt (2, 3) - Install and tighten [3x] 9 N.m (80 lb in)
Install the front side door latch cover bolt (1) and tighten 2.5 N.m (22 lb in)
Connect the electrical connector. (4)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten 4.7 N.m (42 lb in)
Front Side Door Outside Handle Replacement (Without Keyless Entry) , or Front Side Door Outside Handle Replacement (With Keyless Entry) - Install
Front Side Door Water Deflector Replacement - Install
