Rear Closure Fixed Handle Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

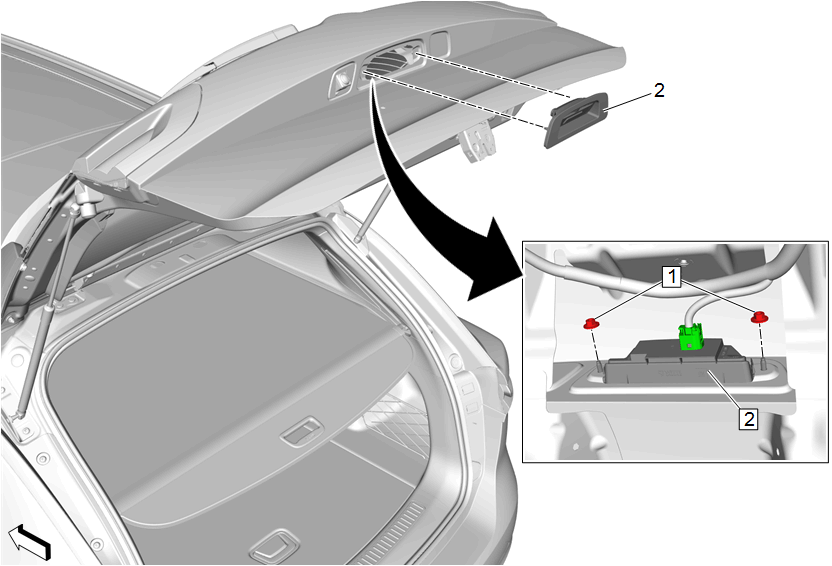

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement (Hatchback) , or Liftgate Lower Trim Finish Panel Replacement (5-Door Wagon 35)
1	Rear Closure Fixed Handle Applique Nut [2x] CAUTION: Fastener Caution Tighten 3 N.m (27 lb in)
2	Rear Closure Fixed Handle Applique Procedure Disconnect the electrical connector. Unlock the retaining tabs. [2x]

Callout

Component Name

Rear Closure Fixed Handle Applique Nut [2x]

CAUTION:

Tighten
3 N.m (27 lb in)

Rear Closure Fixed Handle Applique

Procedure
