Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

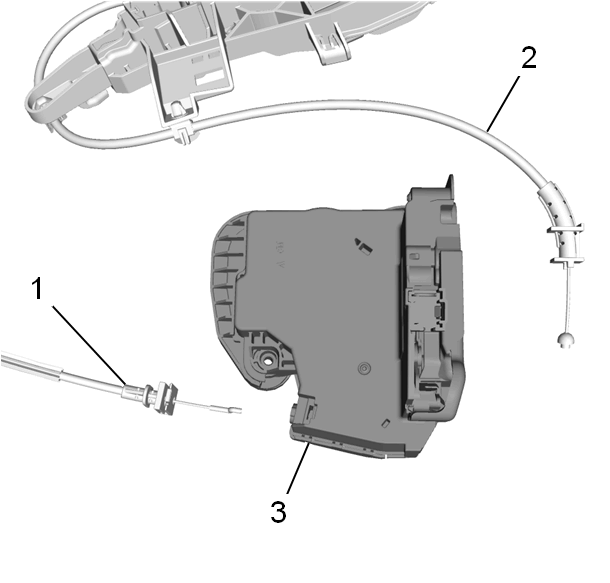

Rear Side Door Inside Handle Cable (1) @ Rear Side Door Latch (3) - Install - Rear Side Door Inside Handle Cable Replacement
Rear Side Door Outside Handle Cable (2) @ Rear Side Door Latch (3) - Install - Rear Side Door Outside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

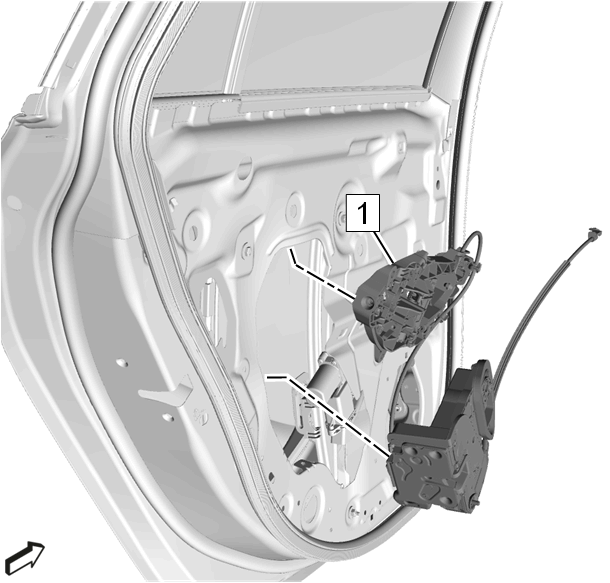

Install the rear side door latch with rear side door outside handle bracket (1) to the rear side door.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

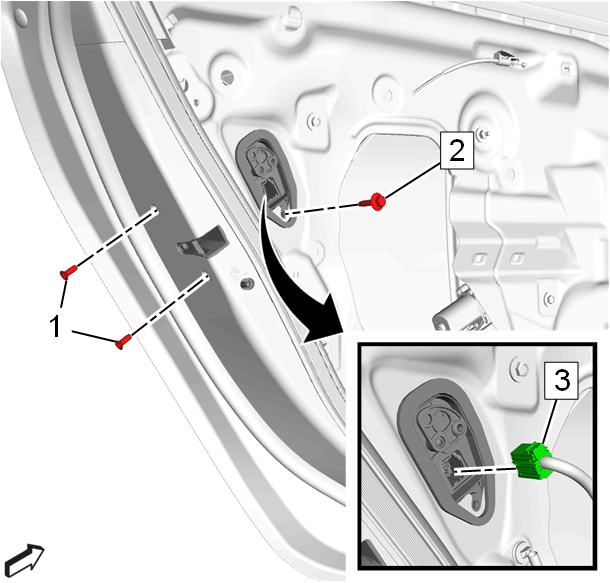

Rear Side Door Latch Bolt (1, 2) - Install and tighten [3x] 9 N.m (80 lb in)
Connect the electrical connector. (3)
Courtesy of GENERAL MOTORS COMPANY

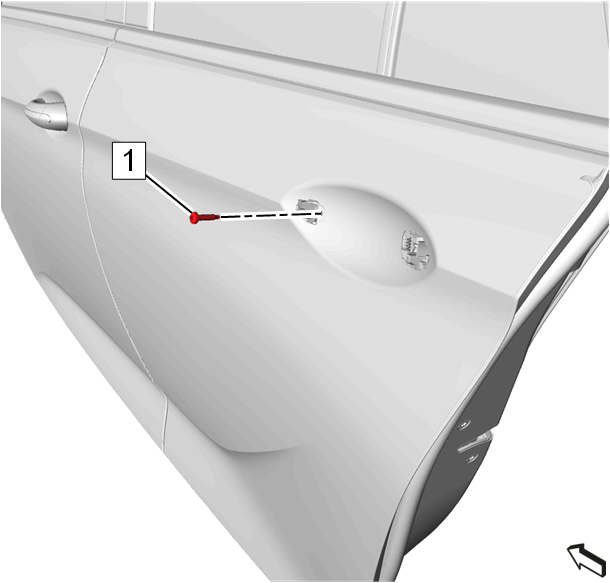

Rear Side Door Outside Handle Bracket Screw (1) - Install and tighten 4.7 N.m (42 lb in)
Rear Side Door Outside Handle Replacement (Without Keyless Entry) , or Rear Side Door Outside Handle Replacement (With Keyless Entry) - Install
Rear Side Door Window Channel Rear Retainer Replacement - Install
