Front Seat Heater Vent Control Module Replacement (GS)

Courtesy of GENERAL MOTORS COMPANY

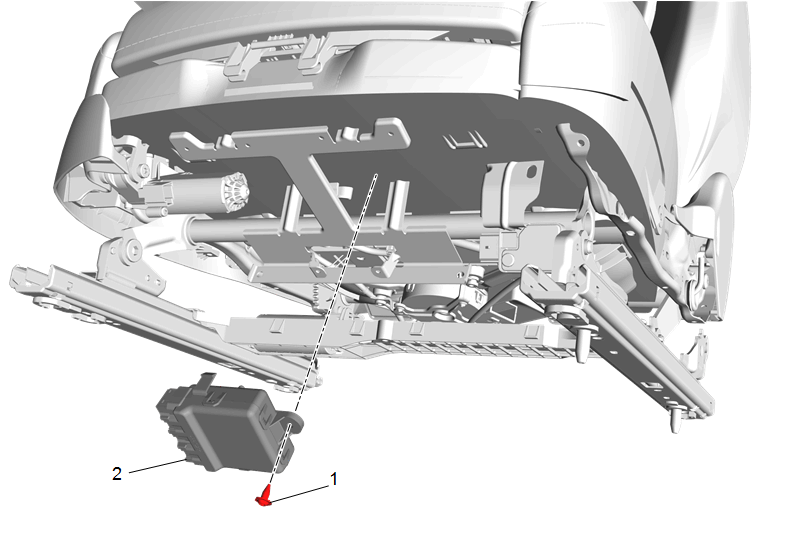

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Adjuster Memory Module Replacement
1	Front Seat Heater Vent Control Module Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Vent Control Module Procedure Release the retaining tabs. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Driver or Passenger Seat Adjuster Memory Module Replacement

Front Seat Heater Vent Control Module Bolt

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Vent Control Module

Procedure

Release the retaining tabs.
Disconnect the electrical connectors.
