Q51P Seat Lumbar Support Valve Assembly - Passenger (AVU-AKE)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

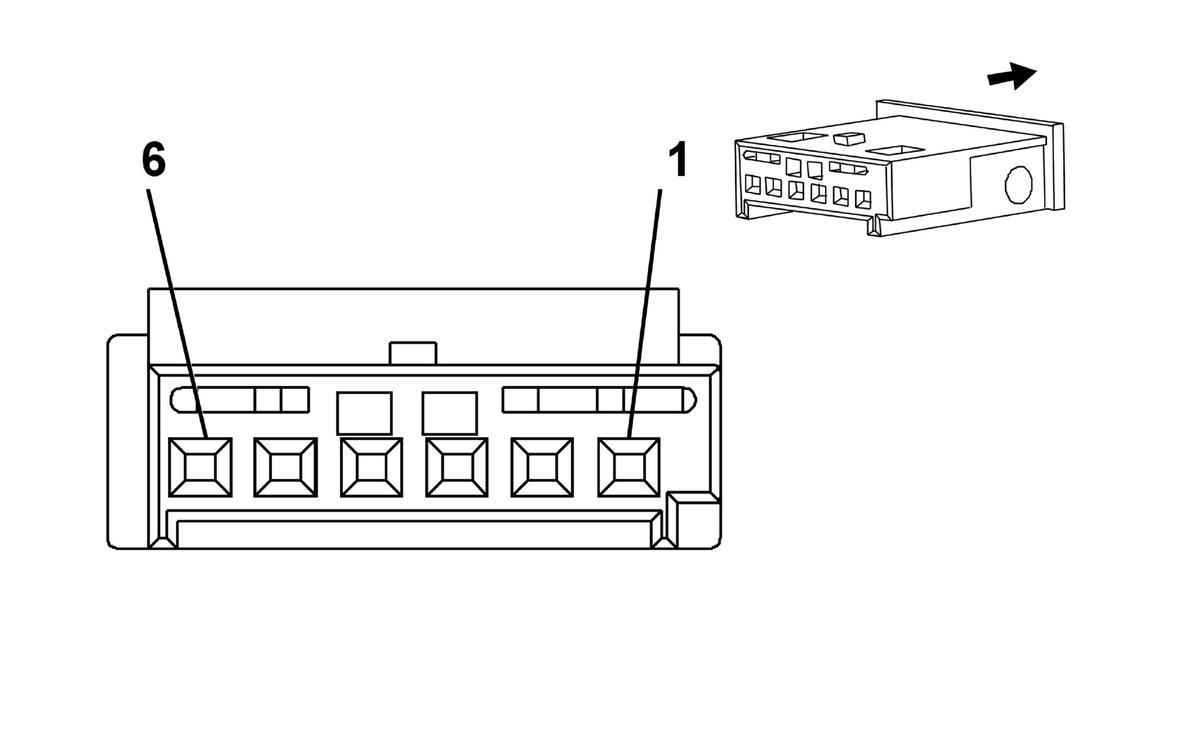

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 2-1241370-3
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Micro-Quadlock Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/BU |
840 |
Battery Positive Voltage |
I |
- |
| 2 |
0.75 |
BK |
2050 |
Ground |
I |
- |
| 3 |
0.75 |
WH/BU |
4891 |
Driver Bolster Pump Control |
I |
- |
| 4 |
0.35 |
YE/GN |
1068 |
Passenger Lumbar Seat Switch Analog Signal |
I |
- |
| 5 |
0.35 |
BK |
2250 |
Ground |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
