Headlamp Control Module Replacement (T4L without T95 and UVG)

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

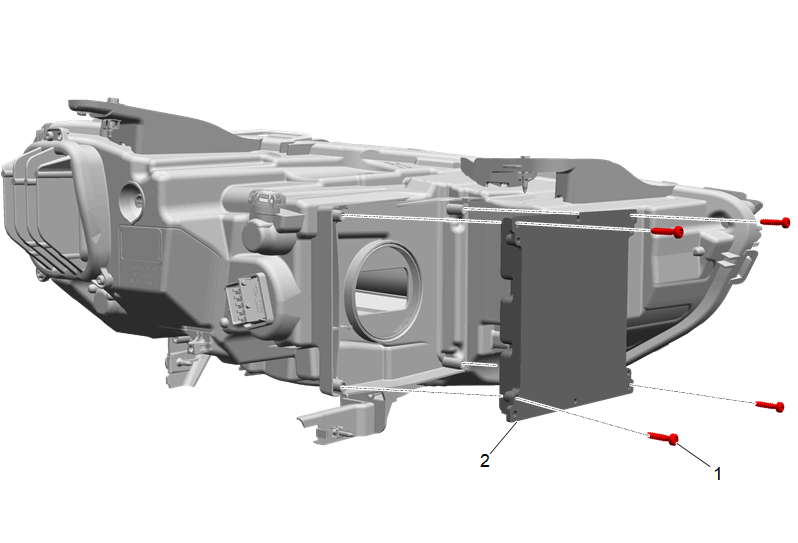

Callout	Component Name
Preliminary Procedure Front Headlamp Replacement
1	Headlamp LED Driver Module Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Headlamp Control Module Procedure Disconnect the electrical connectors. Run all necessary programming and setup procedures. Control Module References

Callout

Component Name

Preliminary Procedure
Front Headlamp Replacement

Headlamp LED Driver Module Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Run all necessary programming and setup procedures. Control Module References
