Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
If servicing left side - Front Compartment Air Deflector - Remove - Front Compartment Air Deflector Replacement
If servicing right side - Front Compartment Splash Shield - Remove - Front Compartment Splash Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Link Rod (1)@Ball Stud (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

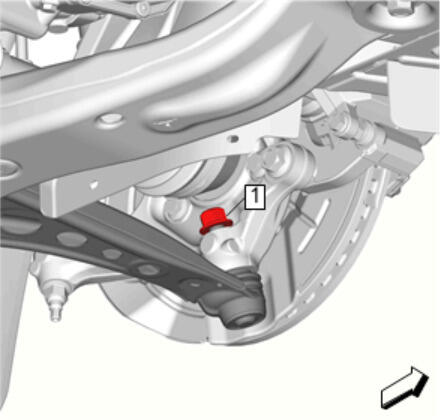

Steering Knuckle Nut(1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

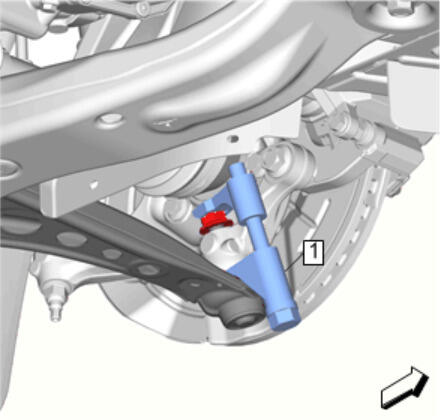

Use the CH-42188-B separator (1) to separate the front lower control arm from the steering knuckle.
Remove the CH-42188-B separator (1) from the front lower control arm and steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Steering Knuckle Nut(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Front Bolt(1) - Remove and DISCARD[2x]
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Rear Nut(1) - Remove[2x]
Front Lower Control Arm Rear Bolt(2) - Remove and DISCARD[2x]
Courtesy of GENERAL MOTORS COMPANY

Remove the front lower control arm (1) from the vehicle.
