Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

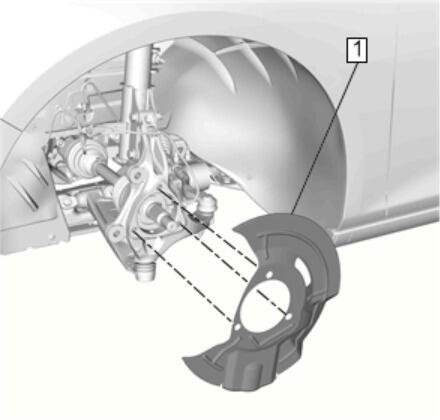

  1. GM4216997

    Front Brake Shield (1) - Install

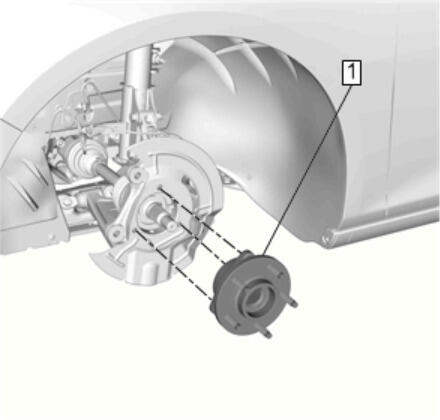

  2. GM4216993

    Front Wheel Bearing and Hub Assembly(1) - Install - Front Wheel Bearing and Hub Replacement

  3. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
