Strut Tower and Hood Hinge Components

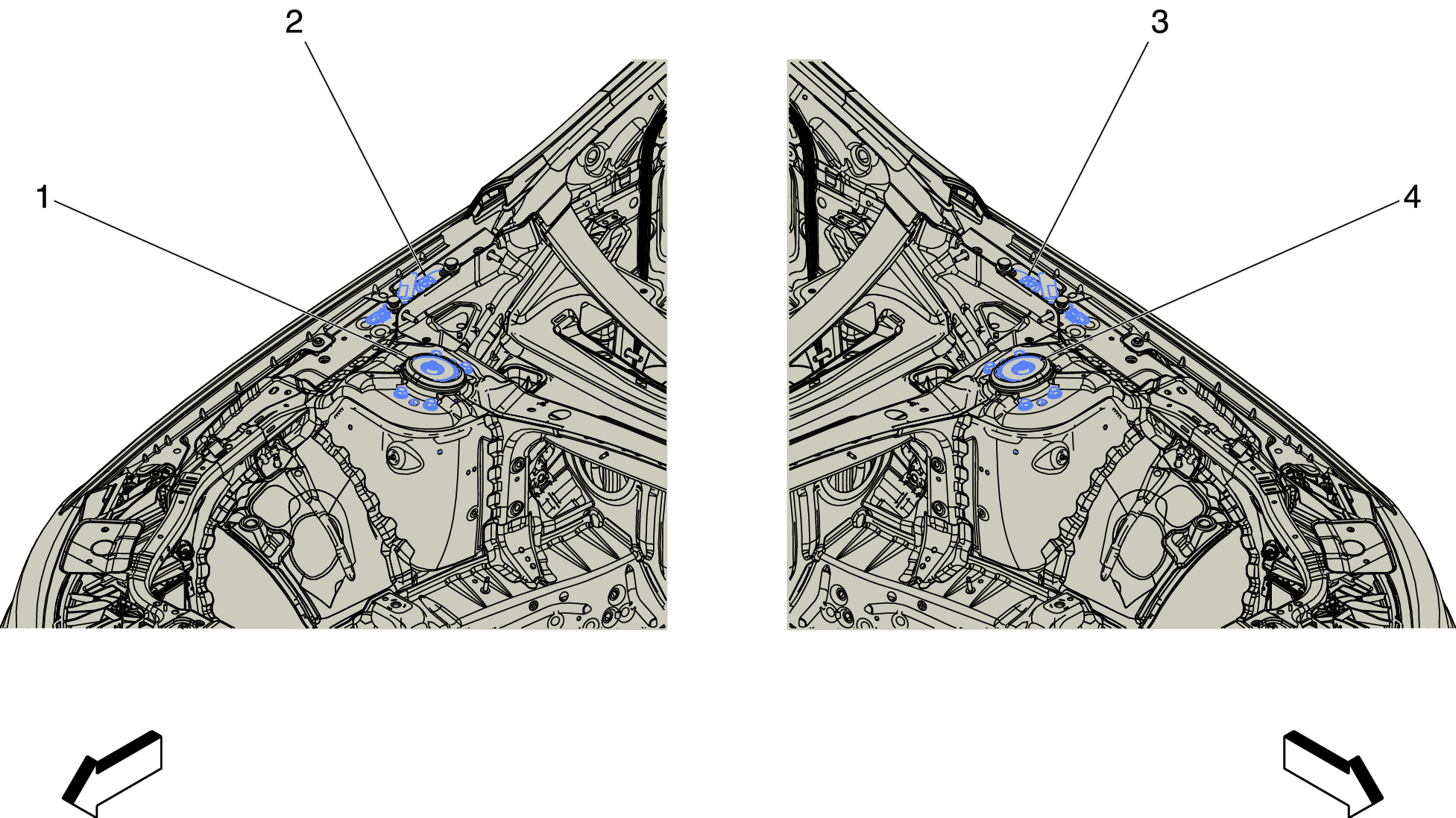

GM4623730Courtesy of GENERAL MOTORS COMPANY
Strut Tower and Hood Hinge Components

Component Name Callout
Q37RF Shock Absorber Actuator - Right Front (F45) Q37RF Shock Absorber Actuator - Right Front (F45+GNQ) , or Q37RF Shock Absorber Actuator - Right Front (GNQ) 1
F100R Hood Hinge Actuator - Right F100R Hood Hinge Actuator - Right (B3T) 2
F100L Hood Hinge Actuator - Left F100L Hood Hinge Actuator - Left (B3T) 3
Q37LF Shock Absorber Actuator - Left Front (F45) Q37LF Shock Absorber Actuator - Left Front (F45) 4
