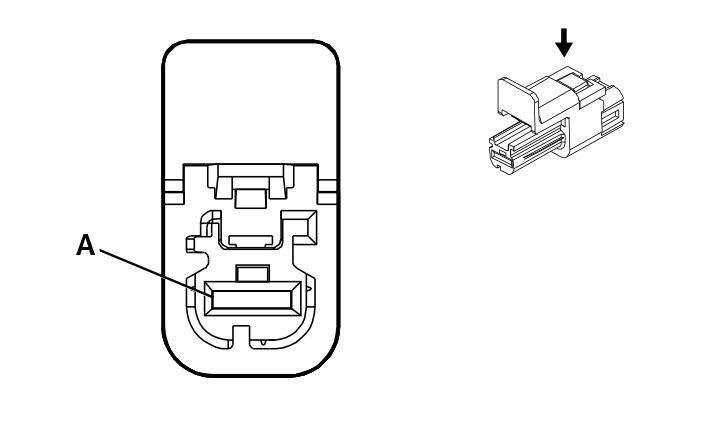

X50D Fuse Block - Battery X7
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13513847
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F 6.3 Series (CU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
10 |
RD/GY |
142 |
Primary Fused Battery Positive Voltage 1 |
I |
LGX |
