Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (3) - Install

CAUTION:

Refer to Fastener Caution

Battery Positive Cable Nut (2) - Install and tighten 16 N.m (12 lb ft)
Engine Wiring Harness Junction Block Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer (1) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

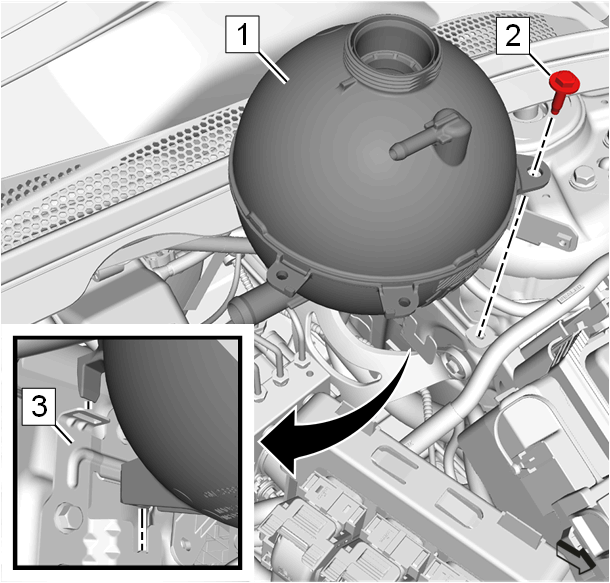

Radiator Surge Tank - Install (1) - Radiator Surge Tank Replacement
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

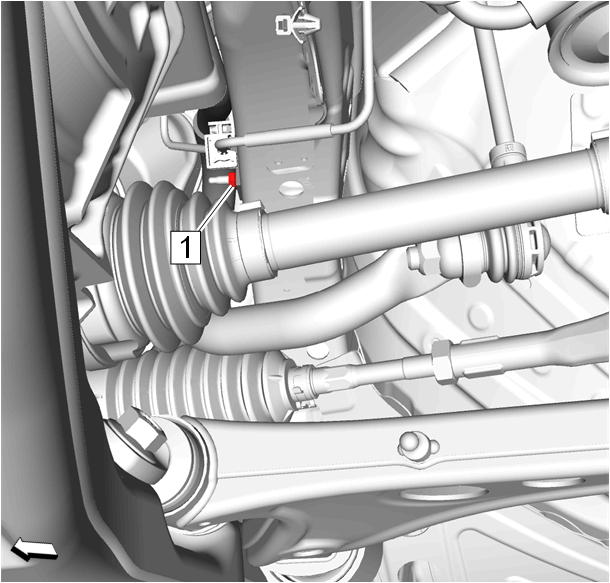

NOTE:
Install the nut through the wheelhouse.

Battery Positive Cable Nut (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

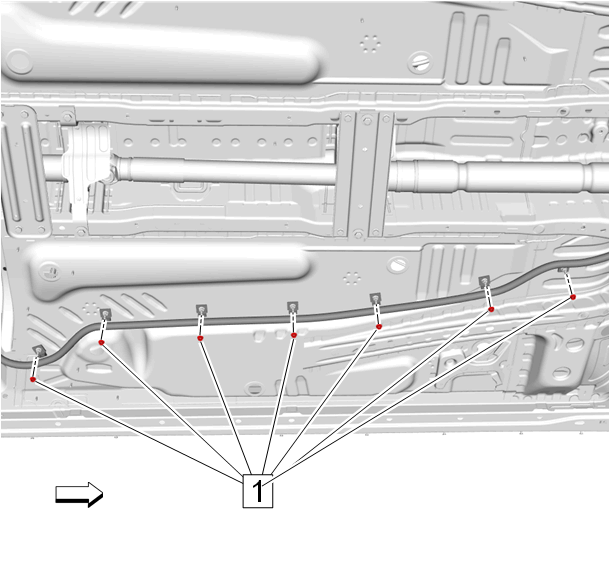

Battery Positive Cable Nut (1) - Install and tighten [7x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

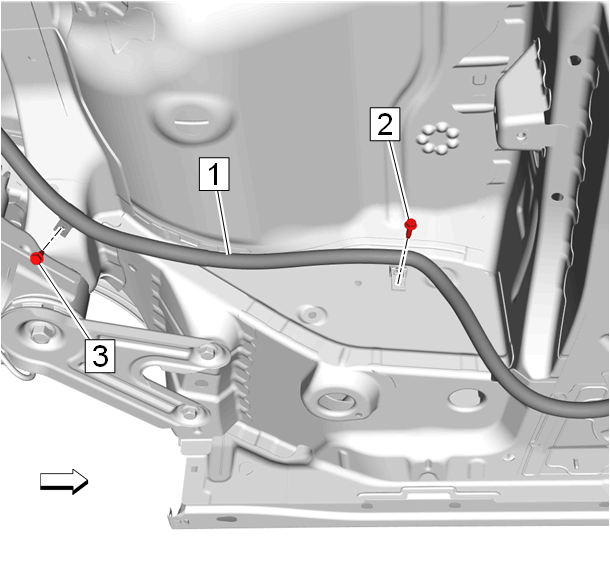

Battery Positive Cable Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

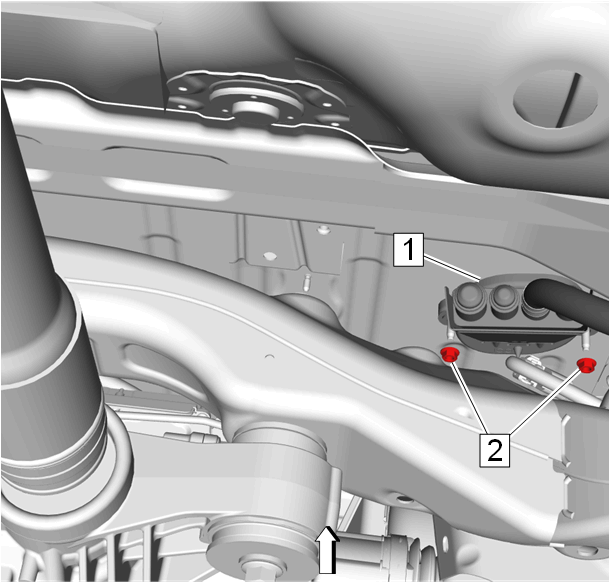

Pass-through Grommet (1) - Install
Pass-through Grommet Fastener (2) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Fuel Tank (1) - Install - Fuel Tank Replacement
Courtesy of GENERAL MOTORS COMPANY

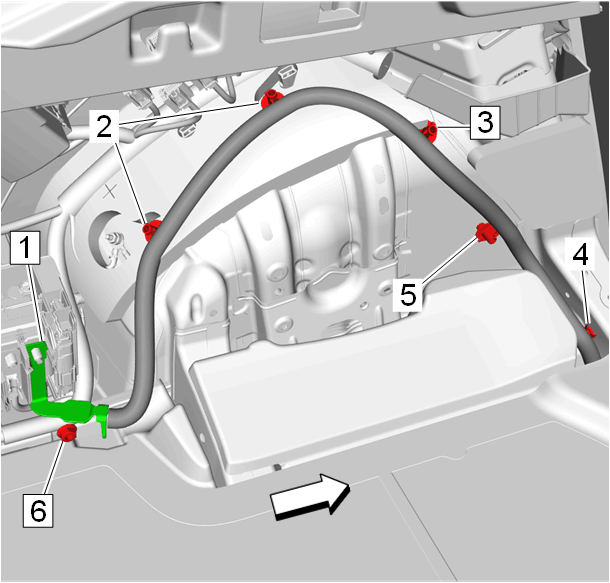

Wiring Harness Bracket (4) - Engage [3x]
Battery Positive Cable Retainer (2, 3, 5) - Engage [3x]
Battery Positive Cable (1) - Install
Battery Positive Cable Nut (6) - Install and tighten 16 N.m (12 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Fuse Block Cover (1) - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (3.6L LGX)
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Side Trim Panel (2) - Install - Rear Compartment Side Trim Replacement - Left Side (Hatchback)
