Installation Procedure

  1. GM5607739Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Charge Air Cooler Bolt (1) - Install and tighten [2x] 5.1 N.m (45 lb in)

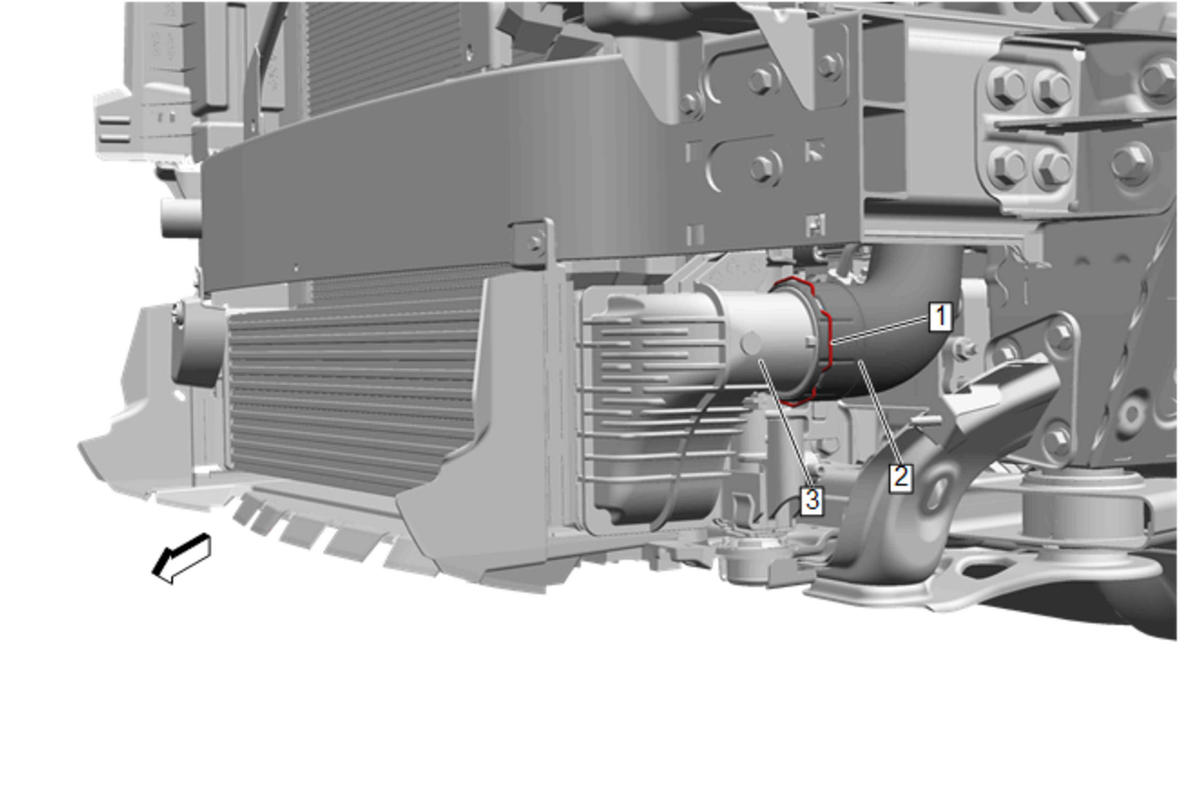

  3. GM5607741Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube (2) @ Charge Air Cooler (3) - Install

  4. Retainer Spring (1) - Engage

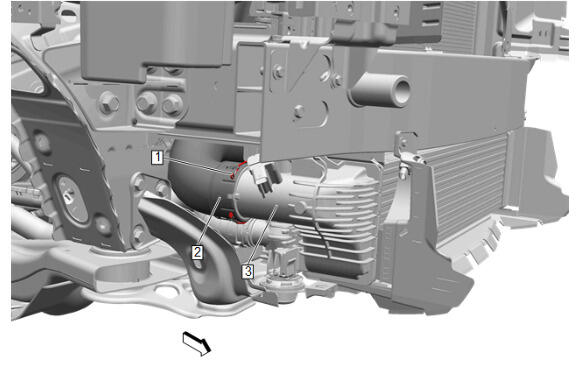

  5. GM5607740Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Hose (2) @ Charge Air Cooler (3) - Install

  6. Retainer Spring (1) - Engage
  7. Connect the electrical connector.
  8. GM5607735Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Upper Baffle - Right Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Right Side

  9. GM5607736Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Side Upper Baffle - Left Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Left Side

  10. GM5591548Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Impact Bar (1) - Install - Front Bumper Impact Bar Replacement

  11. GM5607737Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle (3) - Install - Radiator Air Lower Baffle Replacement
