Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

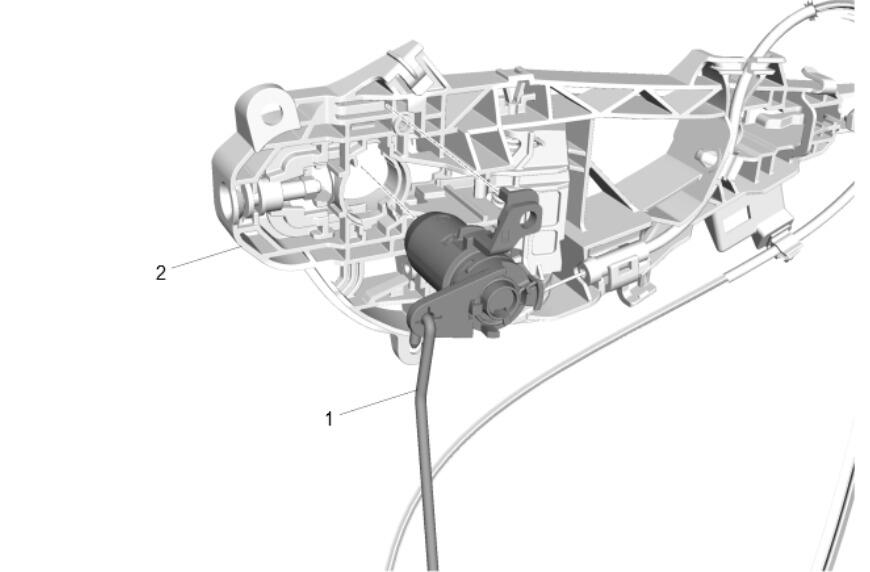

Front Side Door Lock Cylinder Rod (1) @ Front Side Door Lock Cylinder (2) - Install

Courtesy of GENERAL MOTORS COMPANY

Install the front side door lock cylinder with front side door lock cylinder rod (1) to the front side door outside handle bracket (2).

Courtesy of GENERAL MOTORS COMPANY

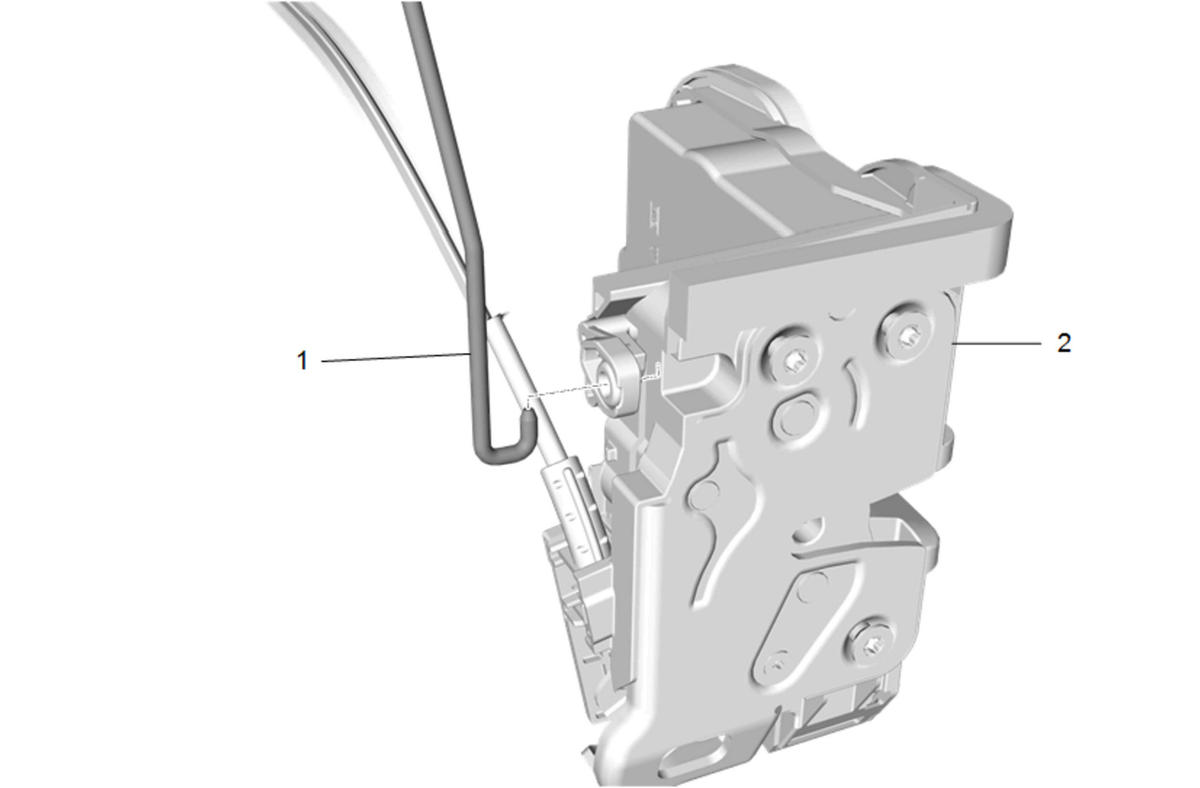

Front Side Door Lock Cylinder Rod (1) @ Front Side Door Latch (2) - Install

Courtesy of GENERAL MOTORS COMPANY

Install the front side door latch with front side door outside handle bracket (1) to the front side door. Front Side Door Latch Replacement
