Accelerator Pedal Replacement

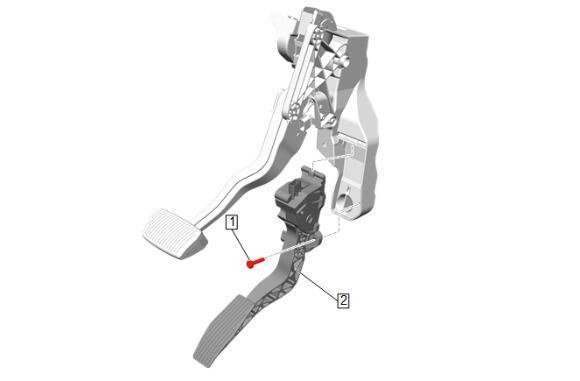

GM5579595Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Accelerator Pedal Lever Bolt
CAUTION:

Fastener Caution


Tighten
6 N.m (53 lb in)
2 Accelerator Pedal
Procedure
Disconnect the electrical connector.
