Air Cleaner Assembly Replacement

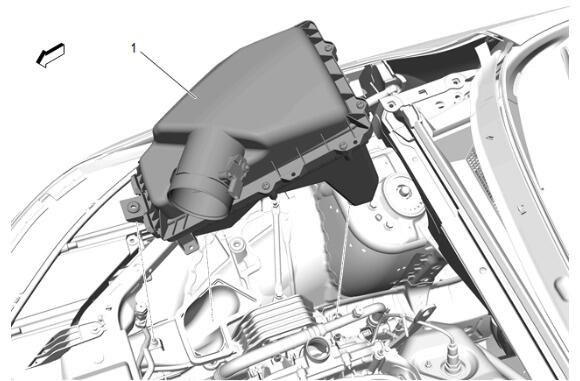

GM5579596Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
  3. Remove wiring harness retainers from air cleaner assembly.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
