Air Cleaner Element Replacement

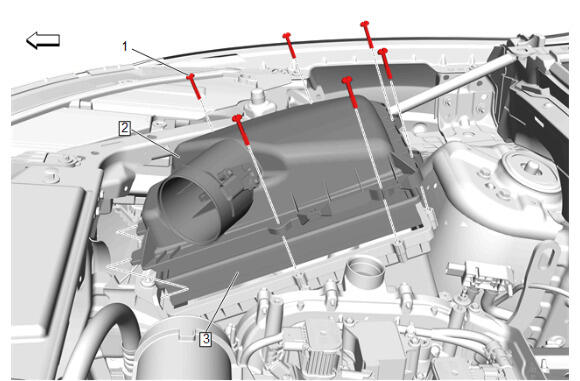

GM5579597Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
  3. Remove wiring harness retainers from air cleaner assembly.
1 Air Cleaner Upper Housing Bolt [6x]
CAUTION:

Fastener Caution


Tighten
4 N.m (35 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
