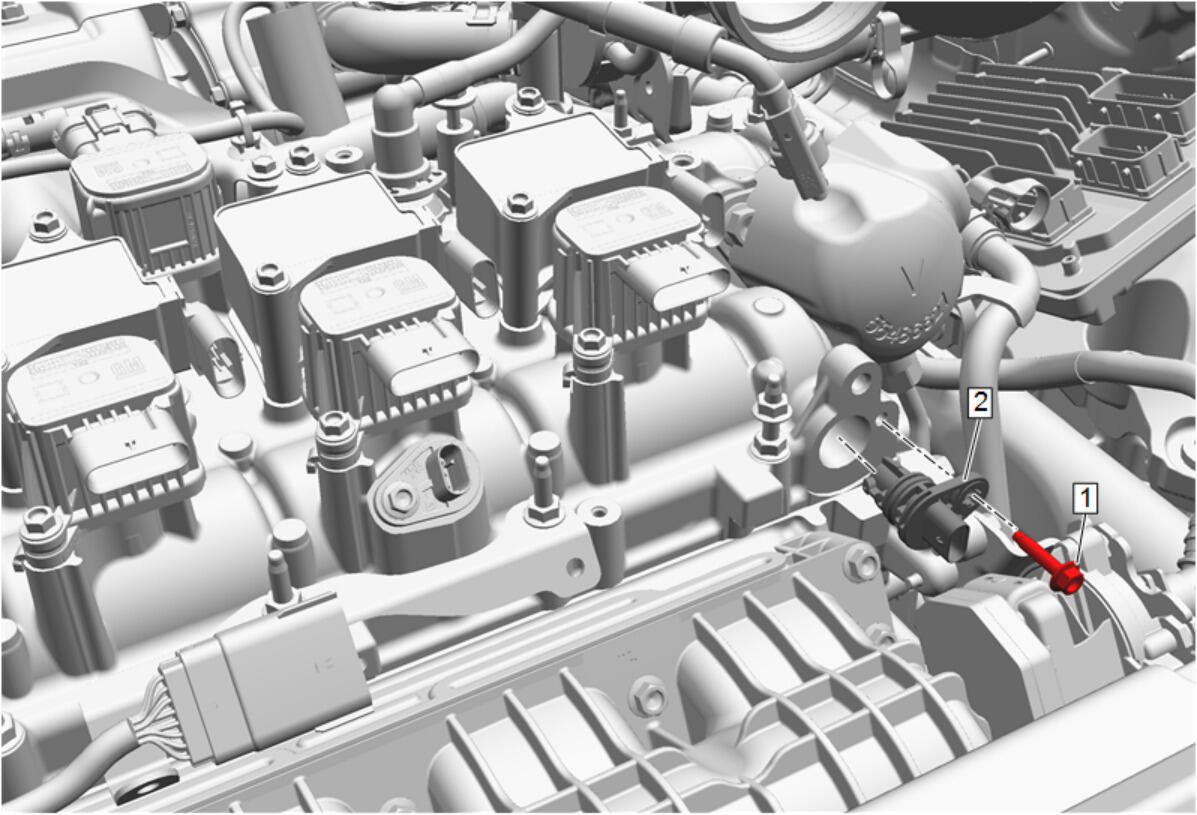

Camshaft Position Sensor Replacement - Intake
| Callout | Component Name |
|---|---|
|
Preliminary Procedures |
|
| 1 | Camshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Camshaft Position Sensor Procedure
|
