Crankshaft Position Sensor Replacement

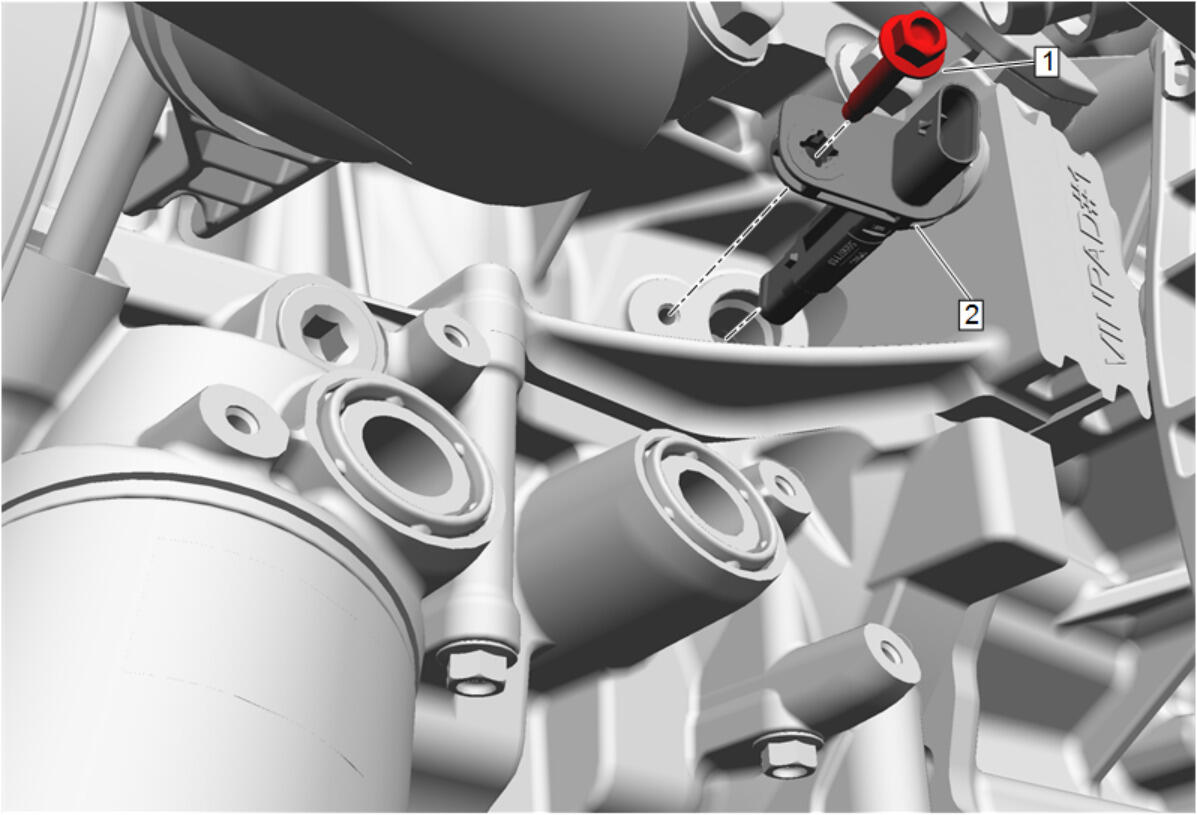

GM5045423

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Compartment Air Deflector Replacement (Base) , or Front Compartment Air Deflector Replacement (1st Design Oil Filter Access) , or Front Compartment Air Deflector Replacement (2nd Design Oil Filter Access)

1

Crankshaft Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

2

Crankshaft Position Sensor

Procedure

Disconnect the crankshaft position sensor electrical connector.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
