Engine Oil Pressure Sensor Replacement (AWD)

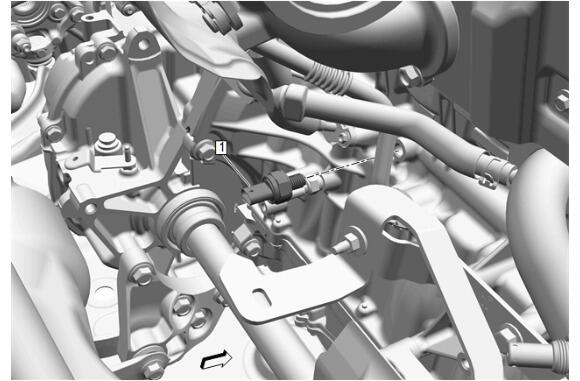

GM5549009Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Engine Oil Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure Disconnect the electrical connector.Tighten 35 N.m (26 lb ft)
