Engine Oil Pressure Sensor Replacement (FWD)

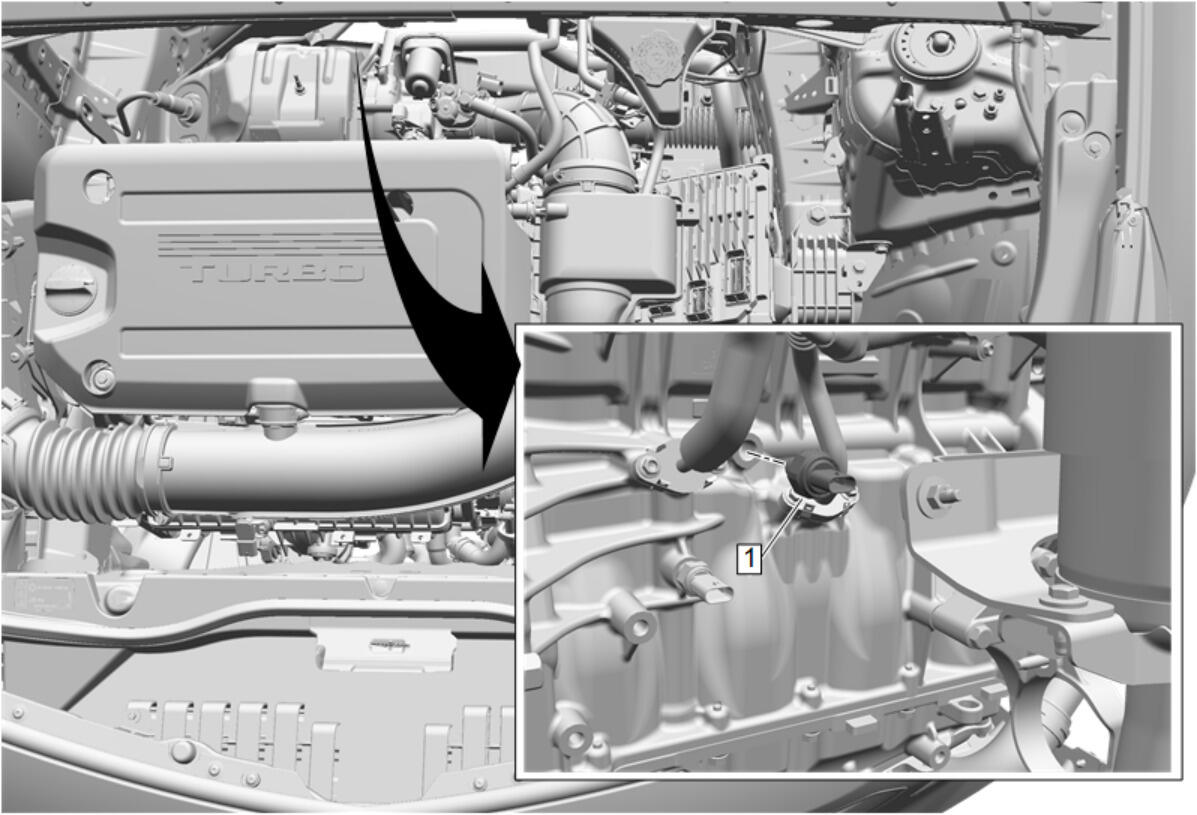

GM5027389Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Engine Oil Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure Disconnect the engine oil pressure sensor electrical wiring harness connector.Tighten 35 N.m (26 lb ft)
