Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

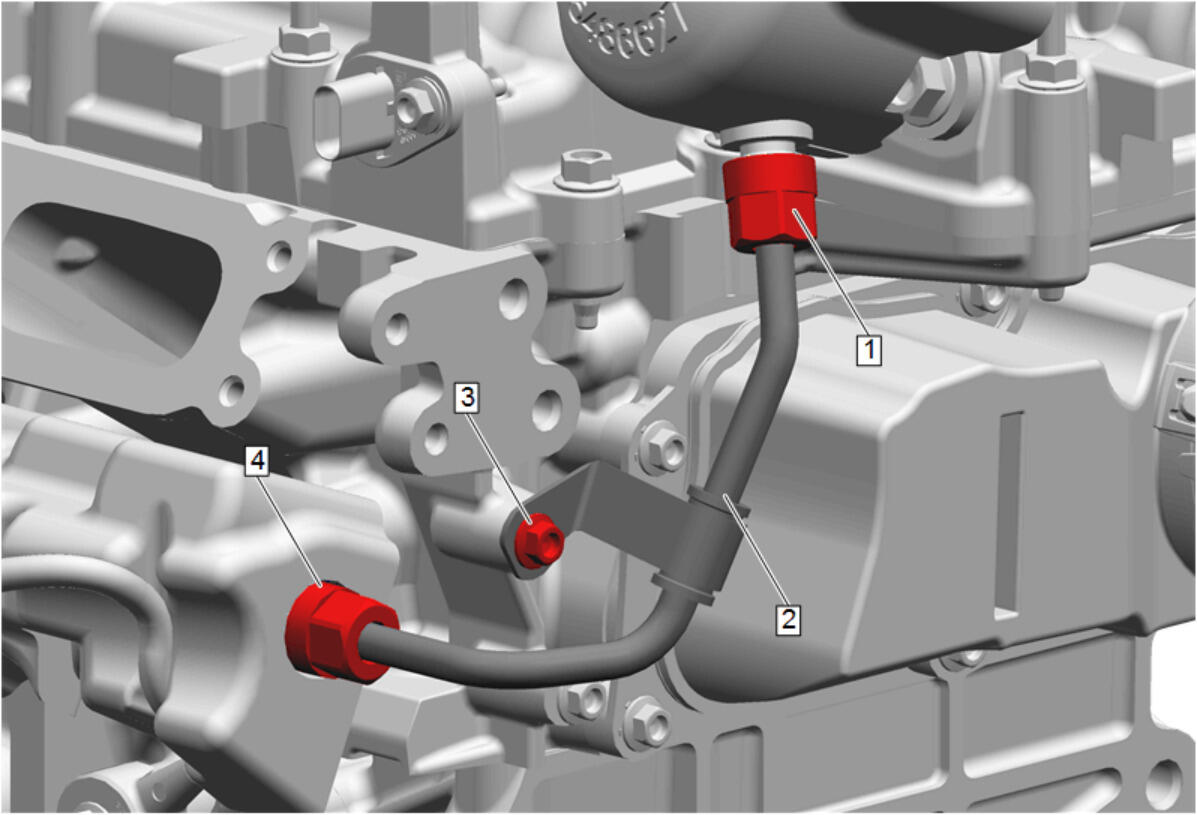

Fuel Feed Intermediate Pipe (2) - Install NEW
Fuel Feed Intermediate Pipe Nut (1, 4) - Install and hand tighten

CAUTION:

Fuel Feed Intermediate Pipe Bracket Bolt (3) - Install and tighten 8.5 N.m (75 lb in)
Fuel Feed Intermediate Pipe Nut (1, 4) - Tighten 30 N.m (22 lb ft)
Courtesy of GENERAL MOTORS COMPANY

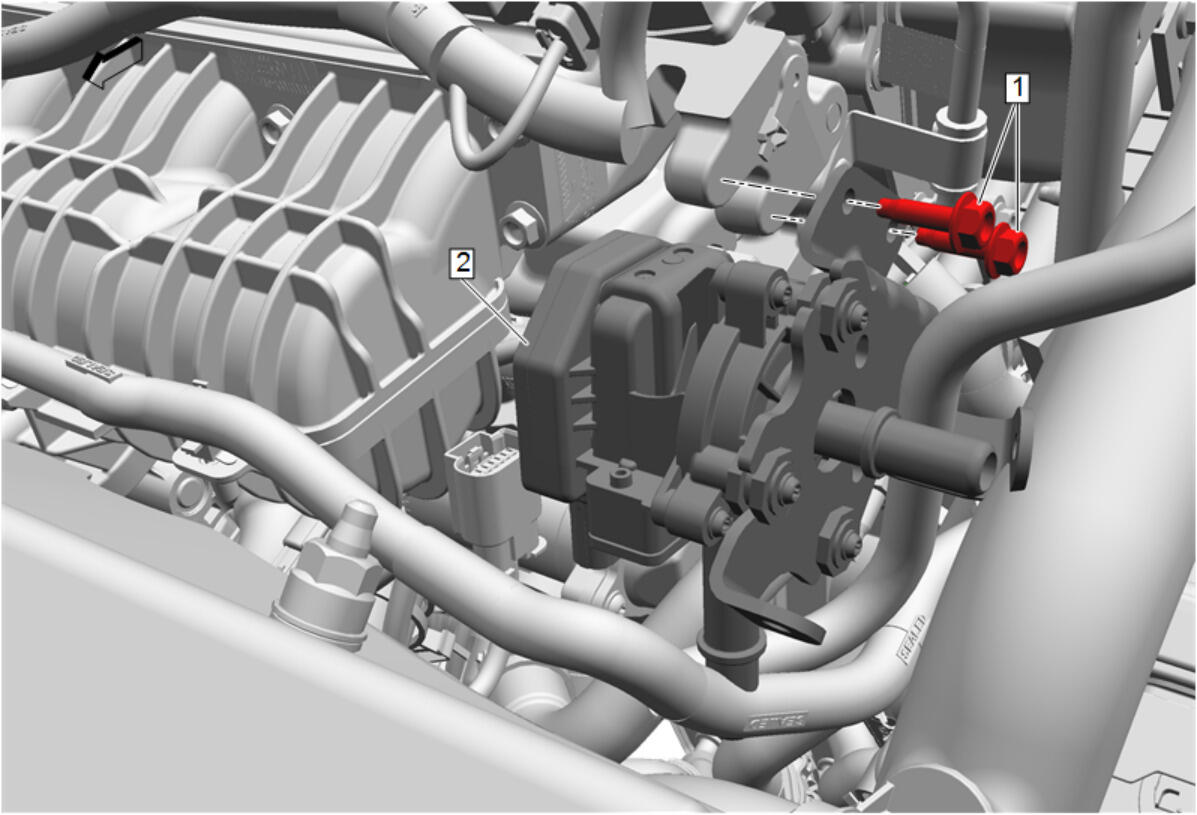

Evaporative Emission Canister Purge Pump (2) - Install - Evaporative Emission Canister Purge Pump Replacement
Air Cleaner Outlet Intermediate Duct - Install - Air Cleaner Outlet Intermediate Duct Replacement
Pressurize the fuel system and inspect for leaks.
