Gas Engine Ignition Spark Plug Replacement

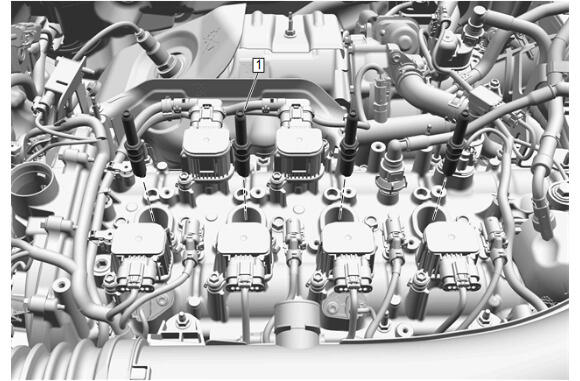

GM5612829Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Ignition Coil Replacement
1 Gas Engine Ignition Spark Plug [4x]
CAUTION:

Refer to: Component Fastener Tightening Caution .


Tighten
17 N.m (13 lb ft)
