Ignition Coil Replacement

Courtesy of GENERAL MOTORS COMPANY

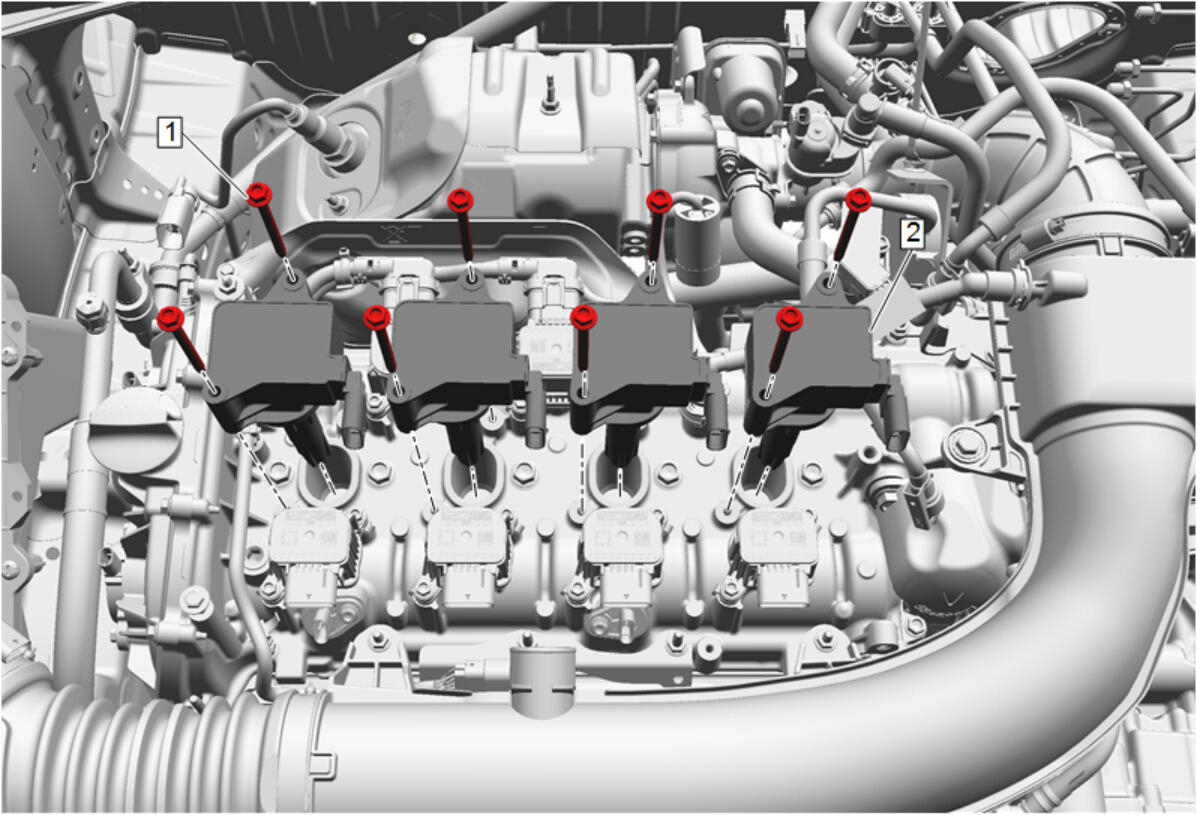

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Resonator Replacement
1	Ignition Coil Bolt [8x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Ignition Coil [4x] Procedure Disconnect the electrical connectors. Inspect the inside of the ignition coil boot for a thin, even coat of dielectric grease. If there is no grease present or additional grease is necessary, continue to the next step. Apply a thin coating of dielectric grease to the inside of the ignition coil boot up to a depth of 15 mm (0.60 in) from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers Remove any excess dielectric grease from around the end of the ignition coil boot and ensure there is not an excessive amount within the boot.

Callout

Component Name

Ignition Coil Bolt [8x]

CAUTION:

Tighten
8.5 N.m (75 lb in)

Ignition Coil [4x]

Procedure

Disconnect the electrical connectors.
Inspect the inside of the ignition coil boot for a thin, even coat of dielectric grease. If there is no grease present or additional grease is necessary, continue to the next step.
Apply a thin coating of dielectric grease to the inside of the ignition coil boot up to a depth of 15 mm (0.60 in) from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers
Remove any excess dielectric grease from around the end of the ignition coil boot and ensure there is not an excessive amount within the boot.
