Intake Air Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

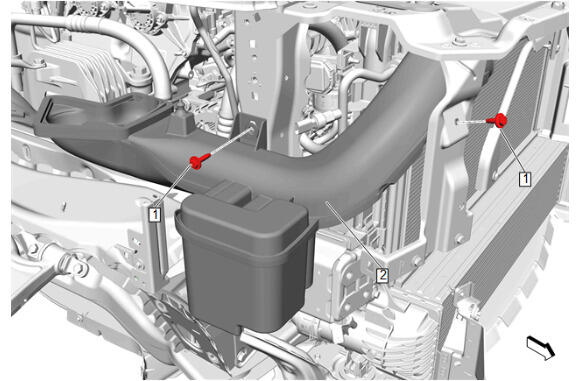

Callout	Component Name
Preliminary Procedures Air Cleaner Assembly Replacement Headlamp-Right Side - Remove - Front Headlamp Replacement Radiator Air Side Upper Baffle Replacement - Right Side
1	Intake Air Duct Bolt [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Intake Air Duct

Callout

Component Name

Preliminary Procedures

Intake Air Duct Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Intake Air Duct
