Intake Air Pressure and Temperature Sensor Replacement

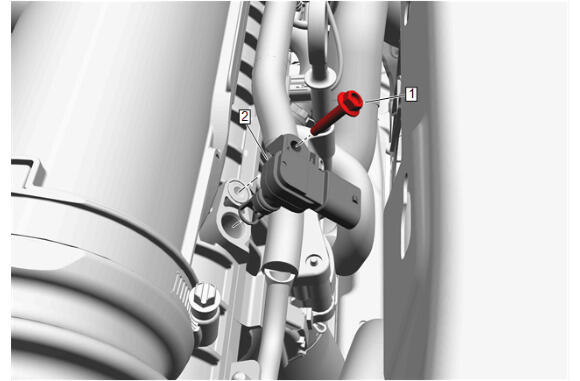

GM5612828

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Intake Air Pressure and Temperature Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

2

Intake Air Pressure and Temperature Sensor

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
Perform the intake system learned values reset. Intake System Learned Values Reset
