Oil Pump Flow Control Solenoid Valve Replacement

Courtesy of GENERAL MOTORS COMPANY

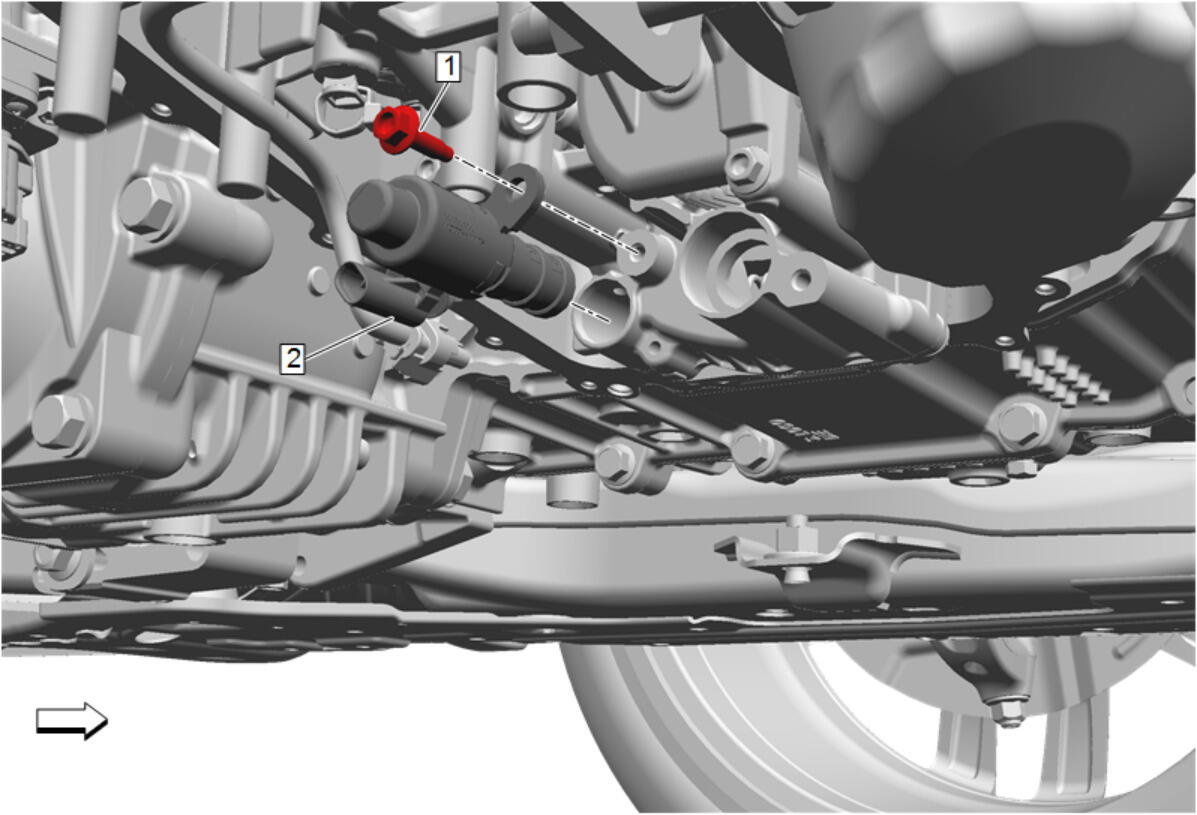

Callout	Component Name
Preliminary Procedures Lower Oil Pan Replacement Oil Pump Screen Replacement
1	Oil Pump Flow Control Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Oil Pump Flow Control Solenoid Valve CAUTION: After removing the oil pump flow control valve, ensure the entire valve has been removed and there is no debris left in the oil pump bore. Failure to ensure the oil pump bore is free from debris may result in engine damage. NOTE: The engine should be allowed to cool for 2 hours, or until the pump is near ambient temperature or there is a high risk of breaking the oil pump flow control solenoid valve off in the bore when attempting removal. Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

Preliminary Procedures

Lower Oil Pan Replacement
Oil Pump Screen Replacement

Oil Pump Flow Control Solenoid Valve Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

Oil Pump Flow Control Solenoid Valve

CAUTION:

After removing the oil pump flow control valve, ensure the entire valve has been removed and there is no debris left in the oil pump bore. Failure to ensure the oil pump bore is free from debris may result in engine damage.

NOTE:

The engine should be allowed to cool for 2 hours, or until the pump is near ambient temperature or there is a high risk of breaking the oil pump flow control solenoid valve off in the bore when attempting removal.

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
