Throttle Body Assembly Replacement

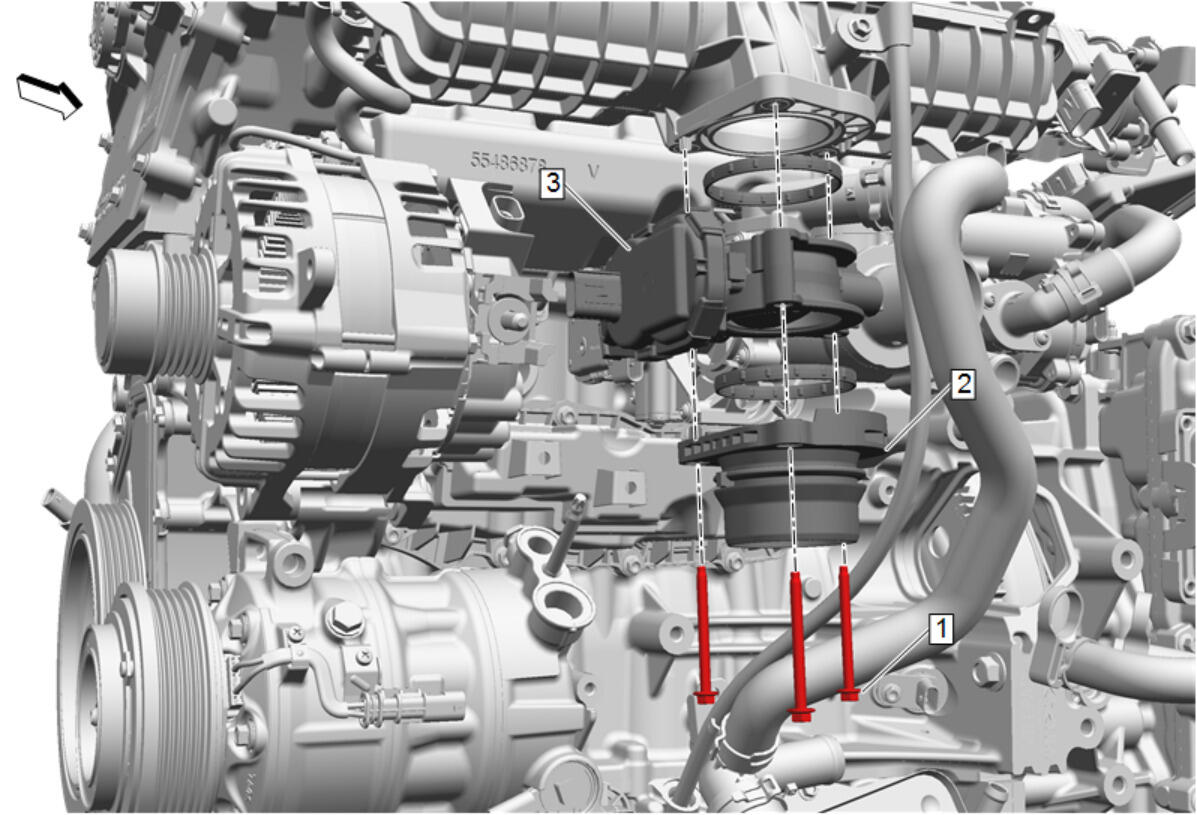

GM5049247Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Charge Air Cooler Outlet Air Hose @ Throttle Body - Remove - Charge Air Cooler Outlet Air Hose Replacement
1 Throttle Body Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
8.5 N.m (75 lb in)
2 Throttle Body Adapter
3 Throttle Body

Procedure

  1. Disconnect the electrical connectors.
  2. Install NEW throttle body gasket/seals.
  3. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
