Installation Procedure

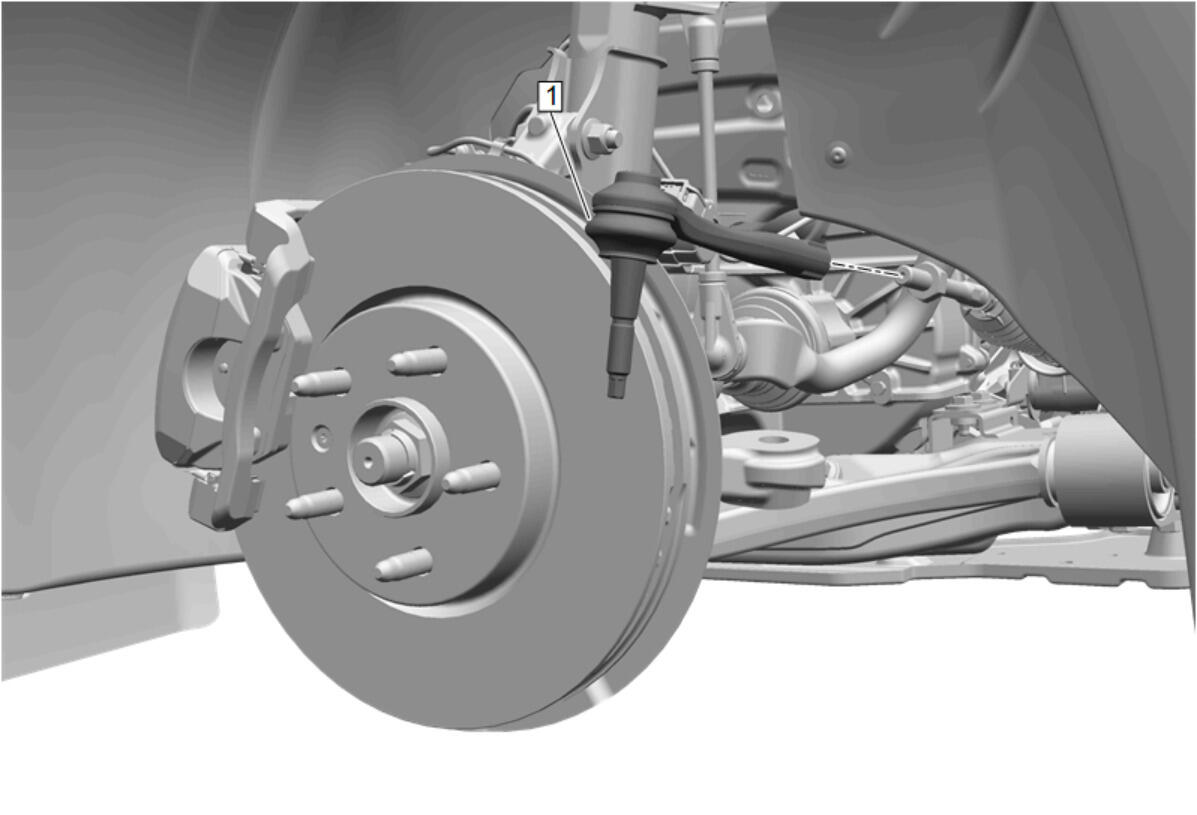

  1. GM5027646Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod (1) - Install

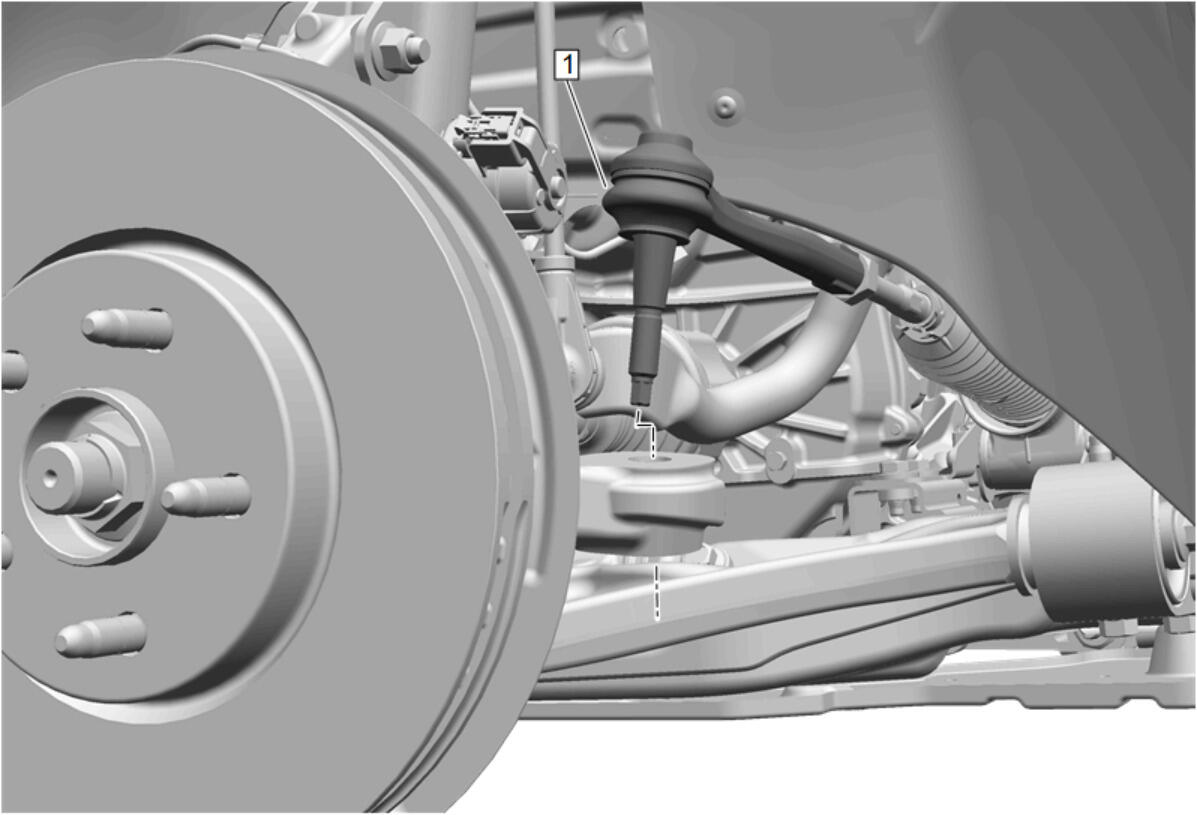

  2. GM5027613Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.

    Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install

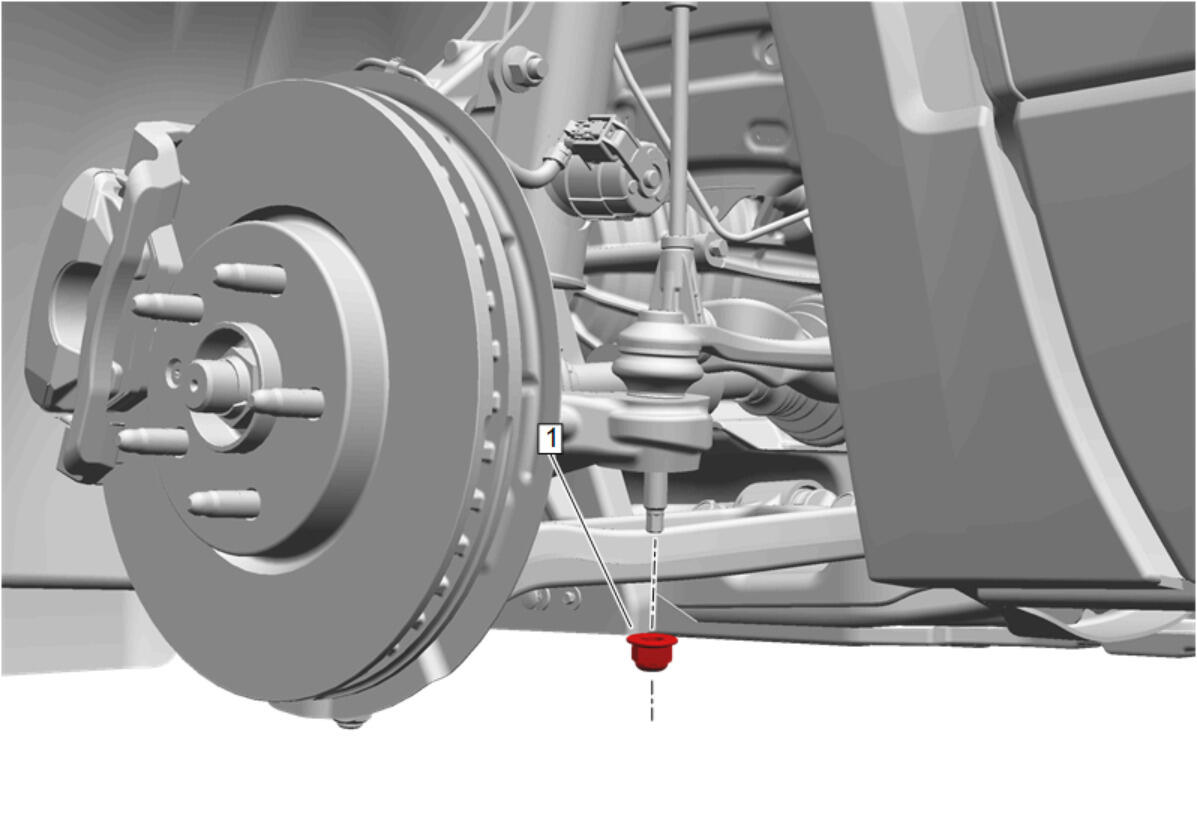

  3. GM5027377Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Linkage Outer Tie Rod Nut (1) - Install and tighten

    1. First Pass: 35 N.m (26 lb ft)
    2. Final Pass: 30 - 45 degrees

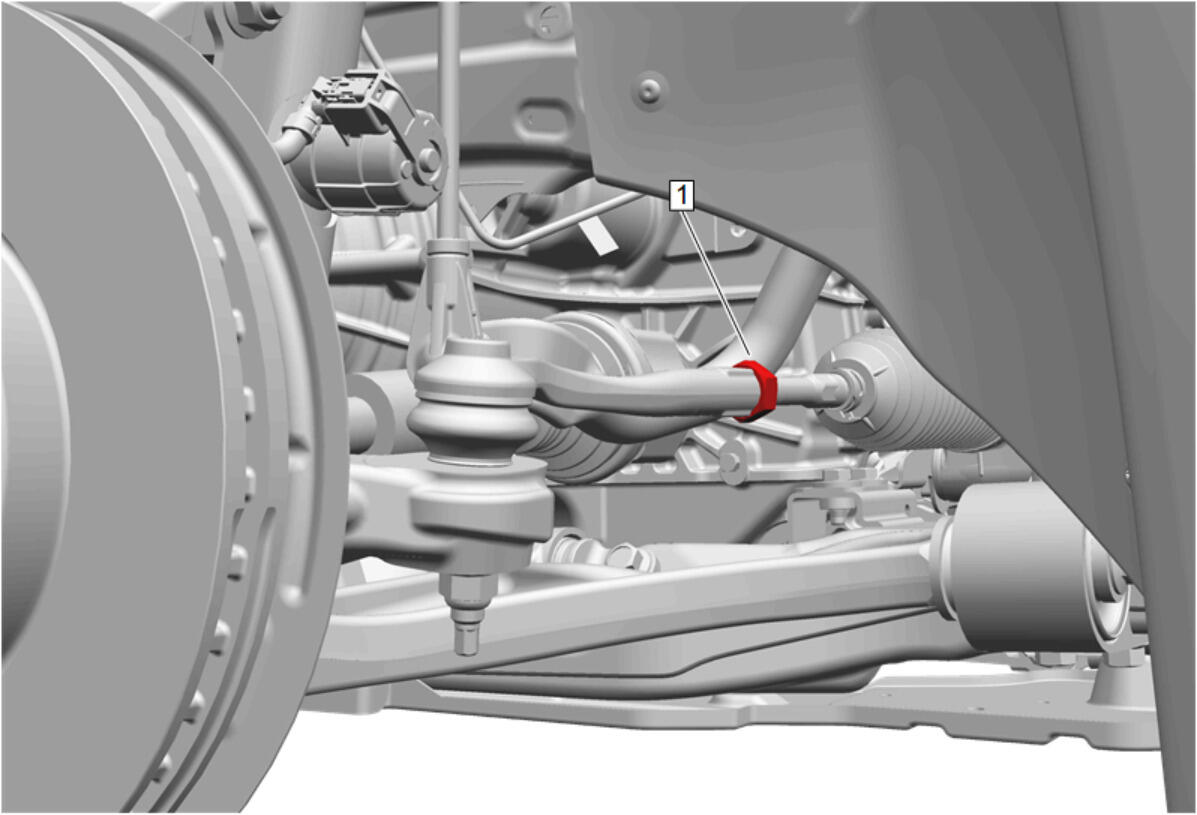

  4. GM5027557Courtesy of GENERAL MOTORS COMPANY

    Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.

  5. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  6. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
