Liftgate Latch Striker Replacement

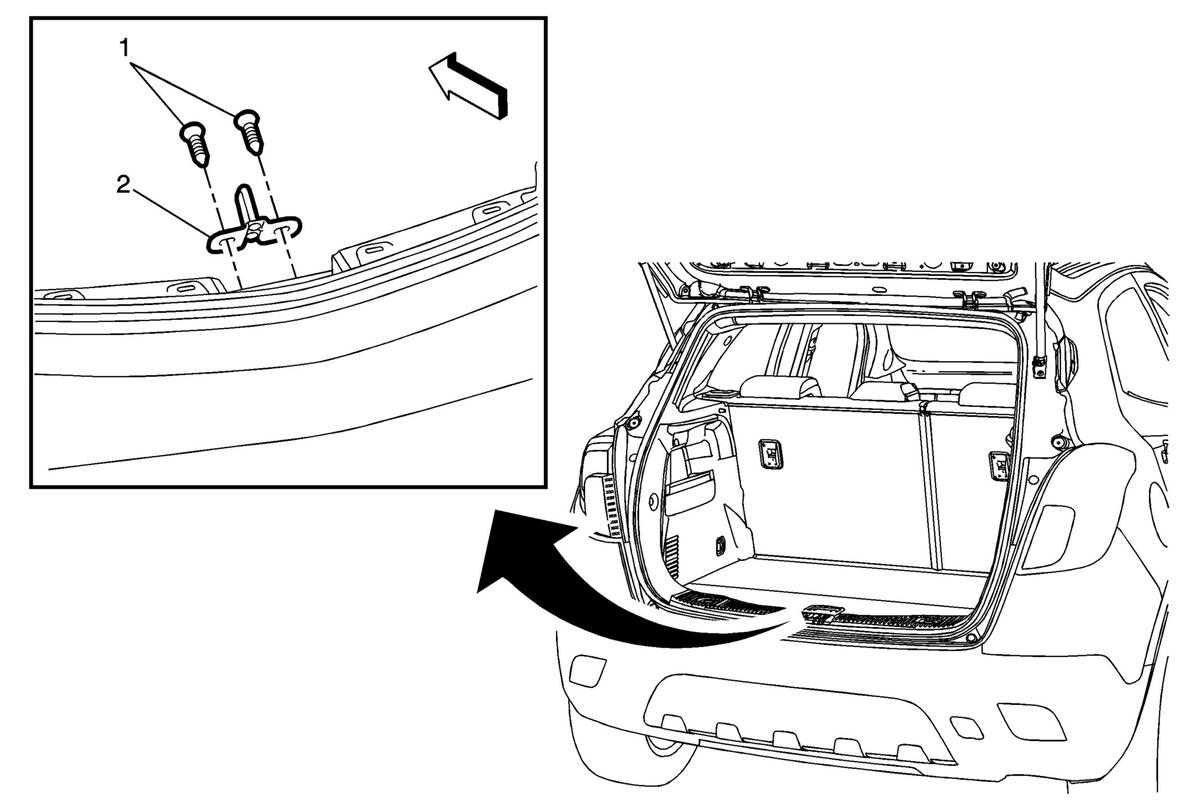

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the load floor panel rear extension panel. Refer to Load Floor Panel Rear Extension Panel Replacement (Buick) , or Load Floor Panel Rear Extension Panel Replacement (Chevrolet) . |
|
| 1 | Liftgate Latch Striker Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Use a grease pencil to outline the striker before removing the fasteners. Tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Latch Striker Procedure Adjust the liftgate, if needed. Refer to Liftgate Adjustment (Chevrolet) , or Liftgate Adjustment (Buick) . |
