Air Cleaner Assembly Replacement

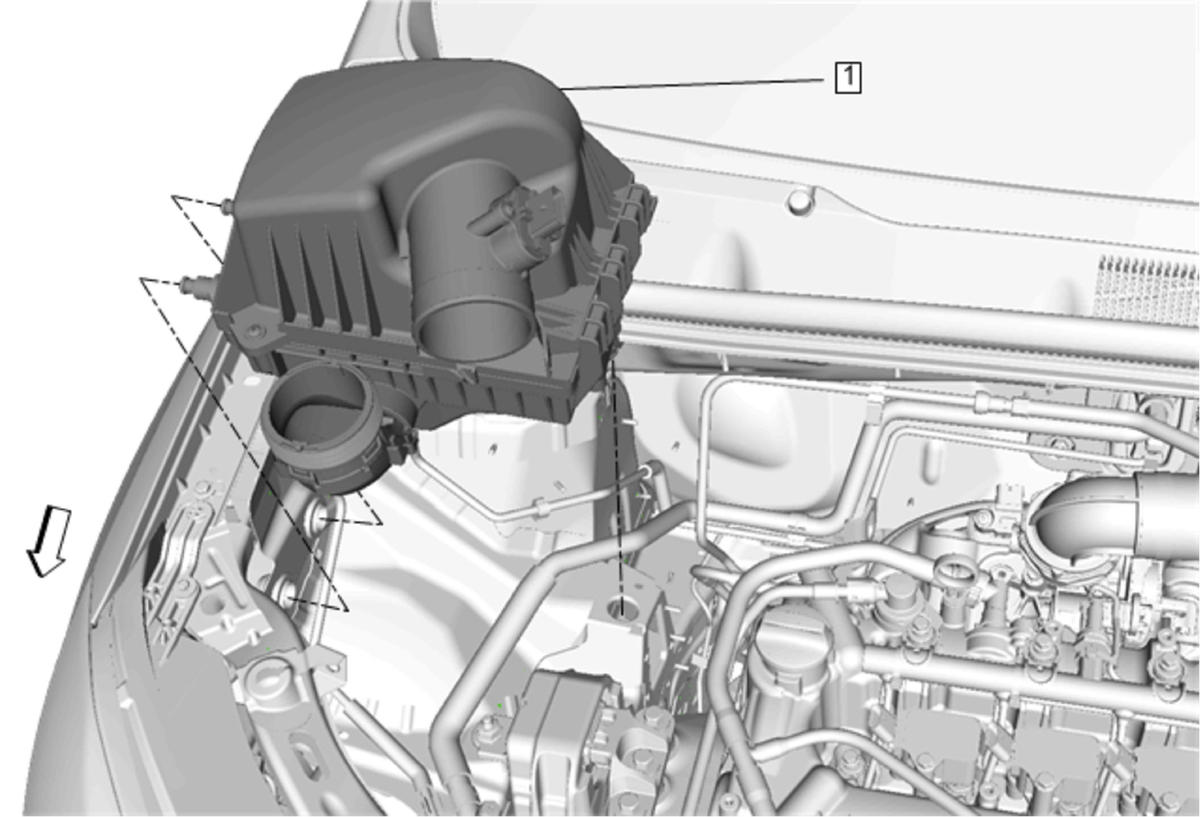

GM4090778Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Inlet Duct Replacement
  2. Air Cleaner Outlet Duct Replacement
  3. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
