Engine Coolant Temperature Sensor Replacement

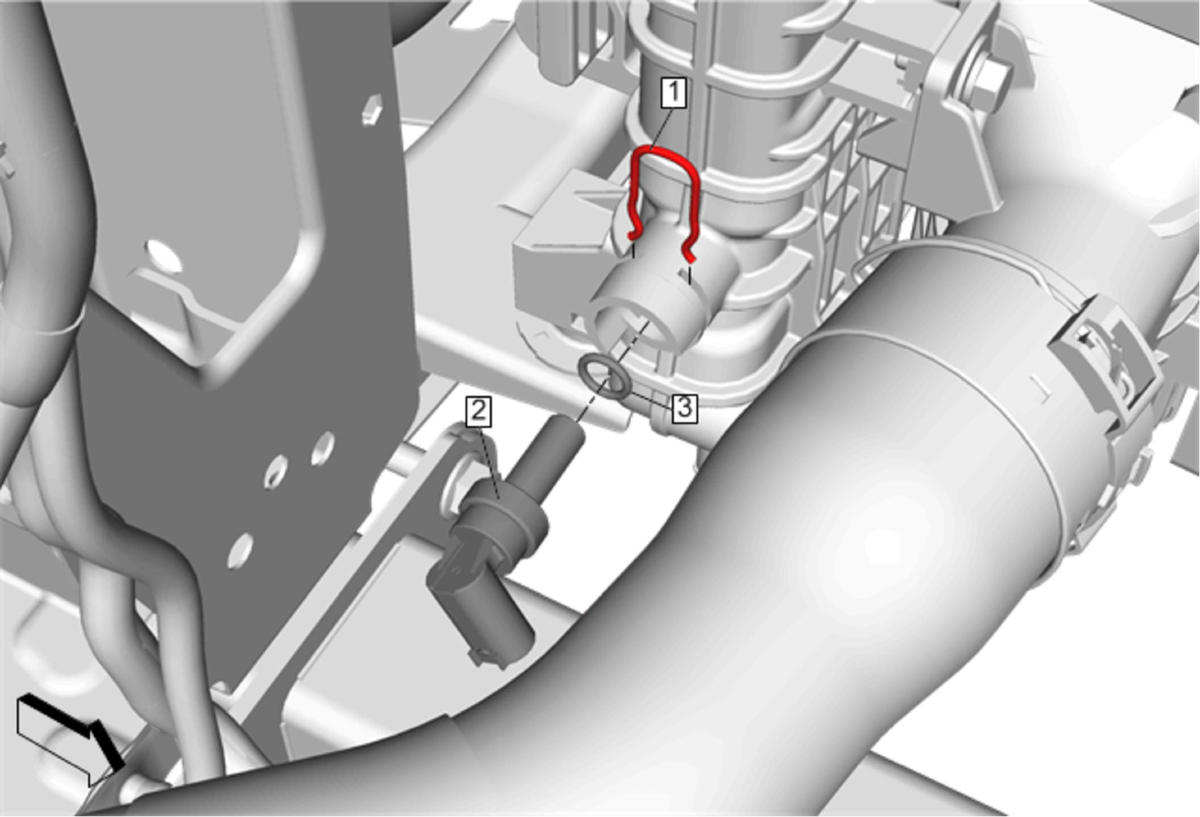

| Callout | Component Name |
|---|---|
| Preliminary Procedure Cooling System Draining and Filling (BUPYEONG Plant, KOREA) , or Cooling System Draining and Filling (SAN LUIS POTOSI Plant, MEXICO) |
|
| 1 | Retaining Clamp |
| 2 | Engine Coolant Temperature Sensor Procedure Disconnect the electrical connector. |
| 3 | Engine Coolant Temperature Sensor Seal Procedure Install a NEW O-ring seal. |
