Engine Oil Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

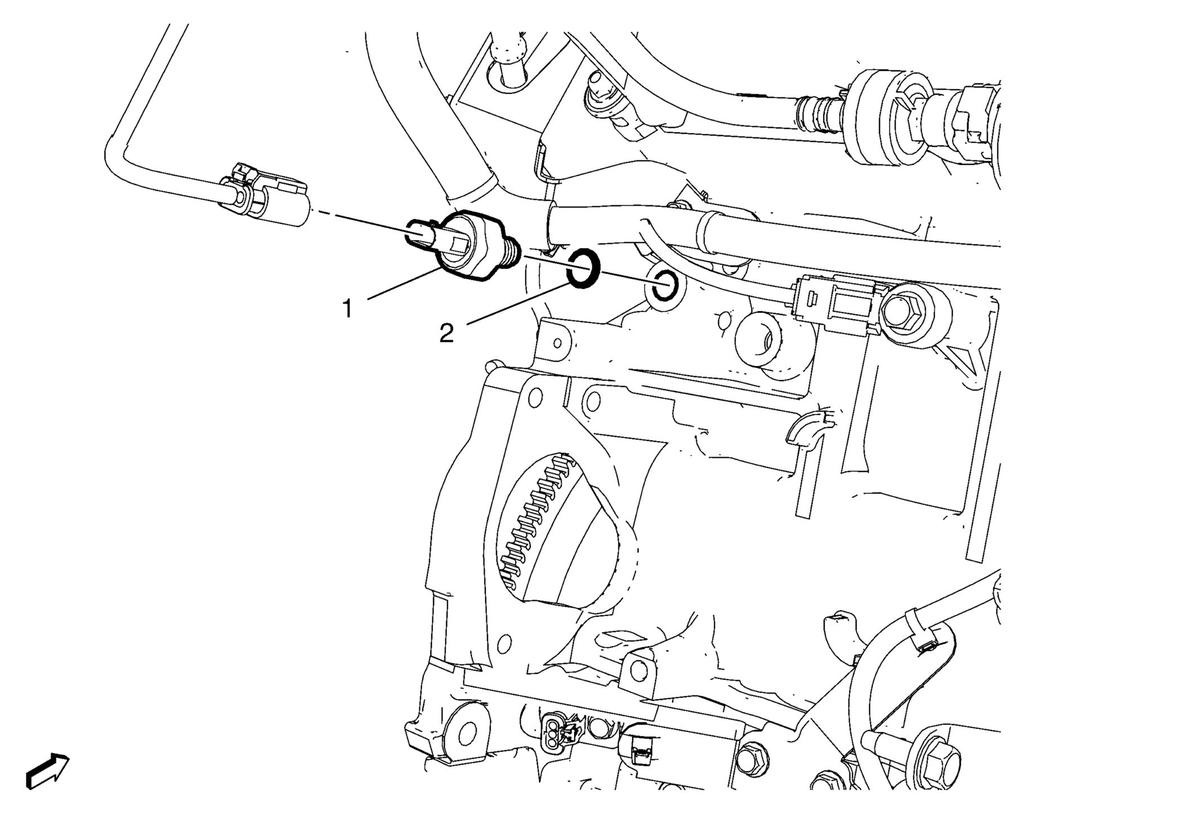

Callout	Component Name
Preliminary Procedure Starter Replacement (LE2-FWD) , or Starter Replacement (LE2-AWD)
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 35 N.m (26 lb ft)
2	Engine Oil Pressure Sensor Seal
