Knock Sensor Replacement (Position 1)

Courtesy of GENERAL MOTORS COMPANY

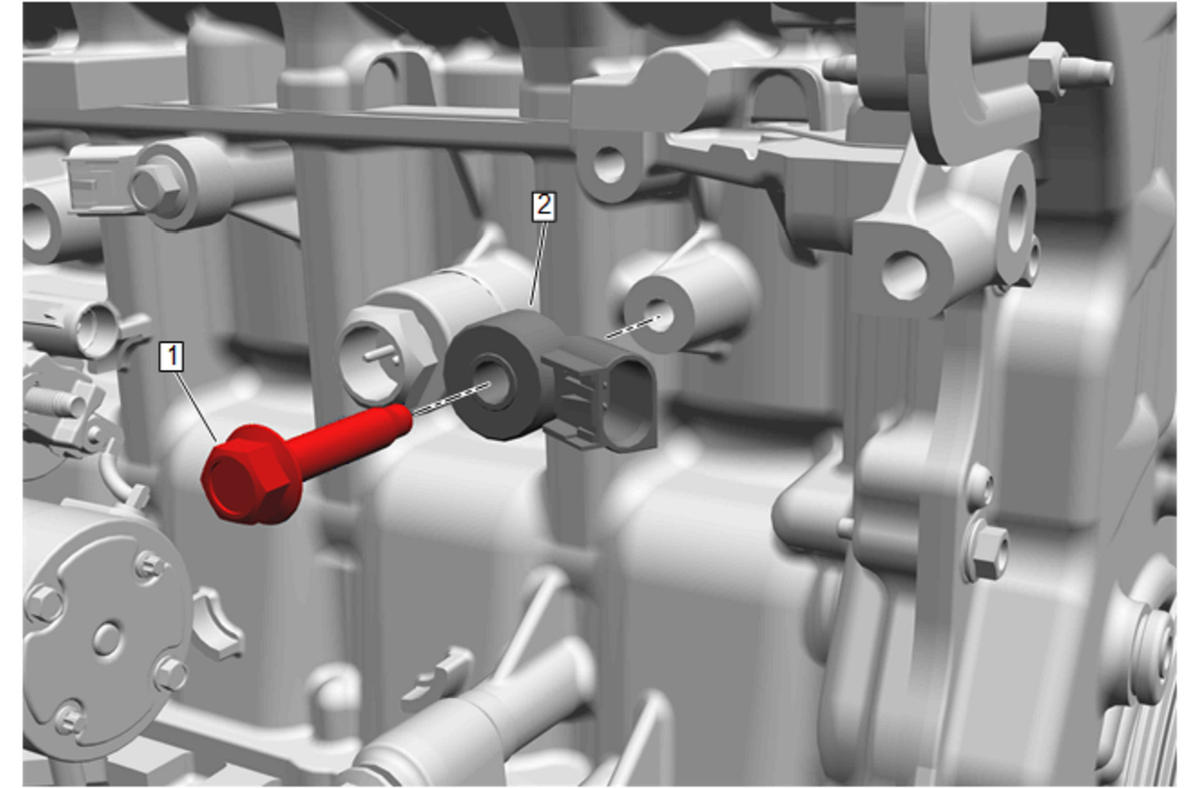

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection (without KL9) , or Battery Negative Cable Disconnection and Connection (with KL9) Generator Replacement (LE2)
1	Knock Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Knock Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Knock Sensor Bolt

CAUTION:

Tighten
25 N.m (18 lb ft)

Knock Sensor
Procedure
Disconnect the electrical connector.
