Throttle Body Assembly Replacement

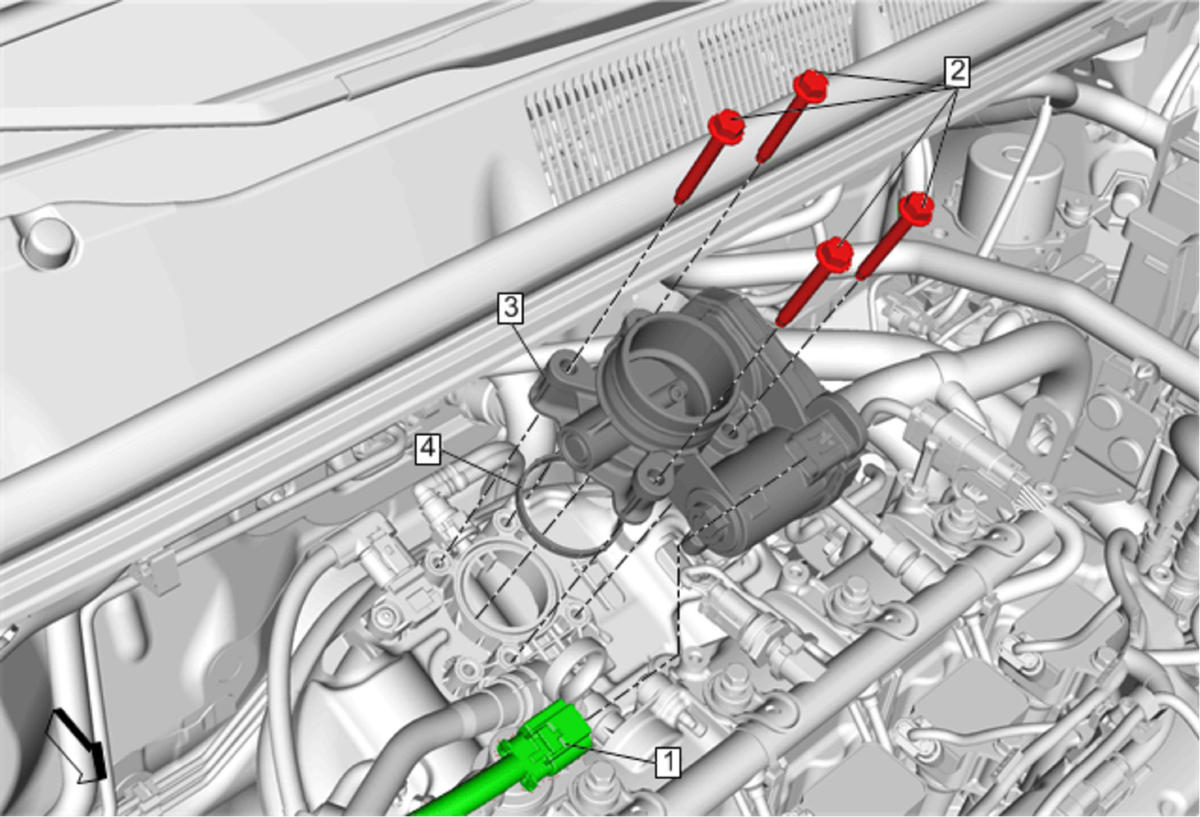

| Callout | Component Name |
|---|---|
| Preliminary Procedure Charge Air Cooler Outlet Air Hose Replacement |
|
| 1 | Electrical Connector |
| 2 | Throttle Body Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Throttle Body Procedure
|
| 4 | Throttle Body Gasket Procedure Install a NEW gasket. |
