Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

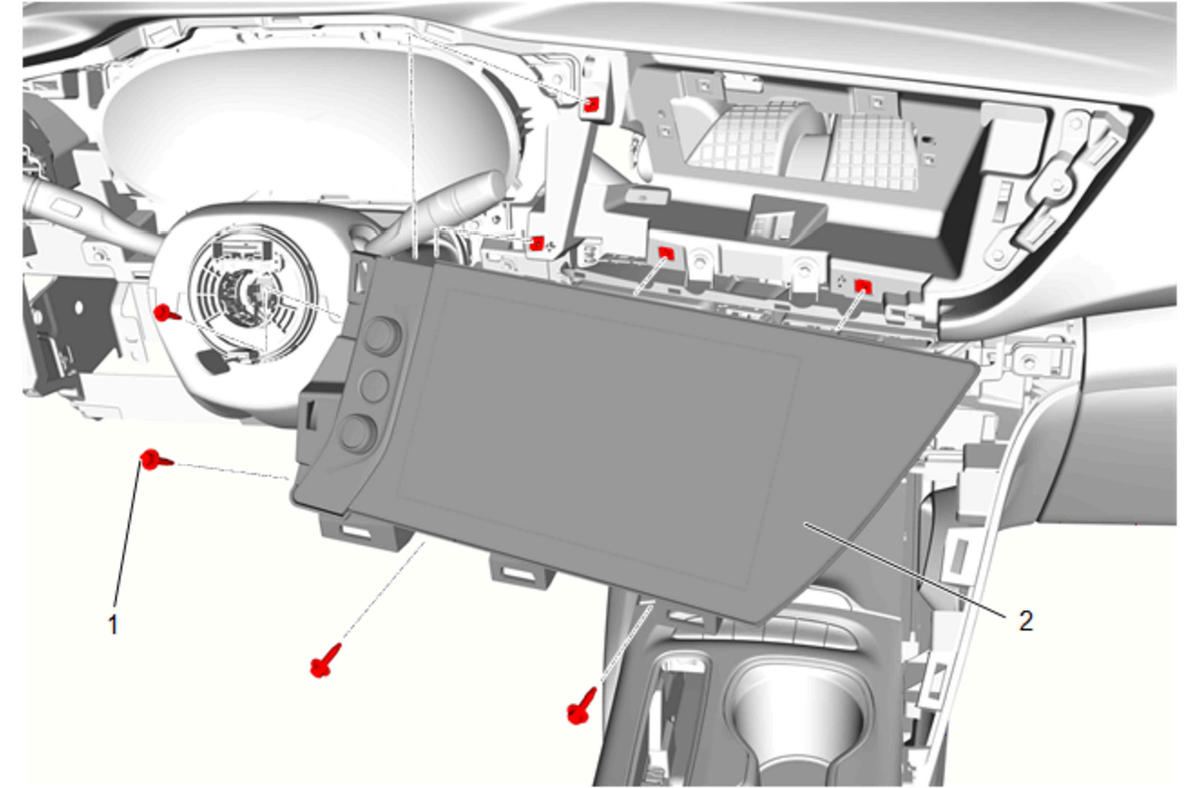

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Instrument Panel Center Trim Plate Applique Replacement Instrument Panel Cluster Trim Plate Replacement
1	Radio Control Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedures

Instrument Panel Center Trim Plate Applique Replacement
Instrument Panel Cluster Trim Plate Replacement

Radio Control Bolt [4x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Radio Control

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
