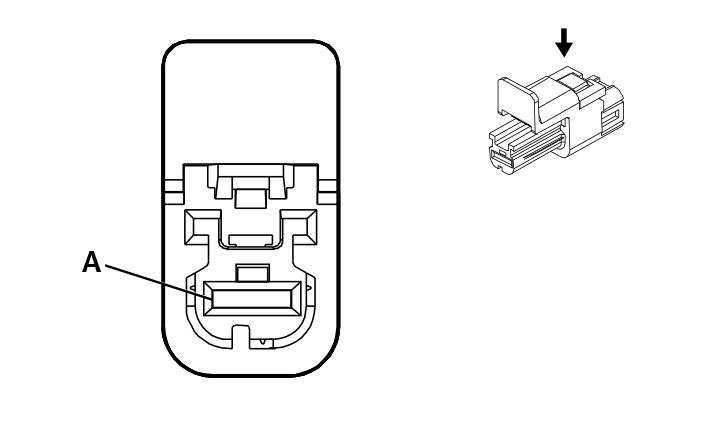

X50B Battery Distribution Engine Compartment Fuse Block X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 13513848
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F 6.3 Series (PK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
8 |
RD/GY |
142 |
Battery Positive Voltage |
I |
- |
