Accessory AC and DC Power Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

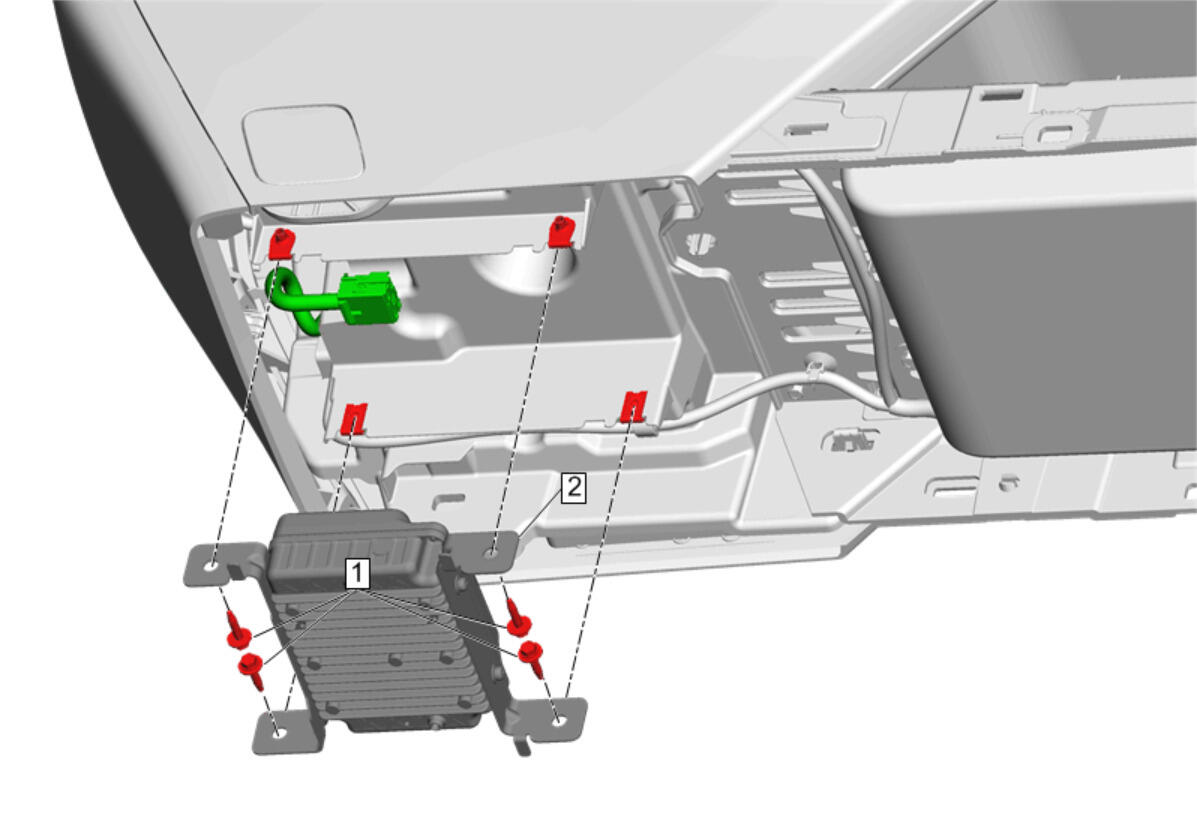

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement
1	Accessory AC and DC Power Control Module Bolt [4x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Accessory AC and DC Power Control Module Procedure  Disconnect the electrical connector.
