Installation Procedure

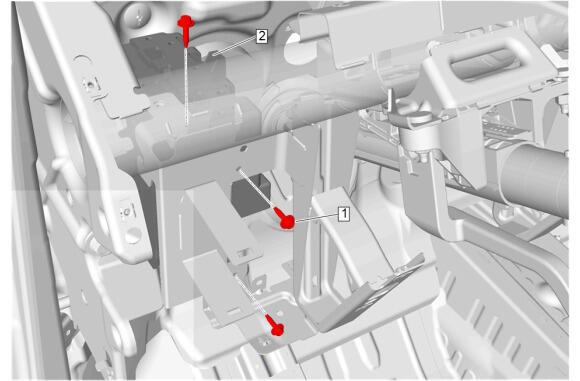

  1. GM6379391Courtesy of GENERAL MOTORS COMPANY

    Body Control Module Bracket (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Body Control Module Bracket Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
  3. Instrument Panel - Install - Instrument Panel Removal and Installation
